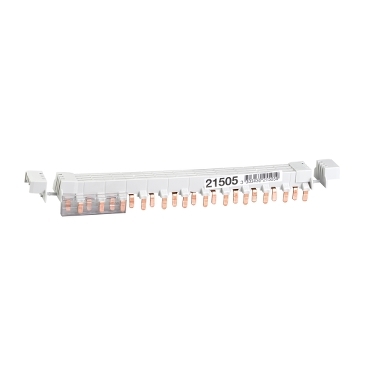

Acti9 Comb busbar 3L+N balanced, 9mm pitch, 12 modules, 80A

Home ProductsCircuit ProtectionActi9Comb busbar

Acti9 Comb busbar 3L+N balanced, 9mm pitch, 12 modules, 80A

Item Number: 21505

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

comb busbar

Warranty

18 months

Physical

Mounting mode

horizontal

Standards

  • EN/IEC 60439-1
  • IEC 60947-7

Connector type

tooth

Marking

N L1 N L2 N L3

Device presentation

cuttable

[ie] rated operational current

80 A at 40 °C

[ue] rated operational voltage

  • 230 V AC Ph/N
  • 400 V AC Ph/Ph

Width

216 mm

Range compatibility

  • Acti 9 Acti9 iDPN
  • Acti 9 Acti9 iDPN Vigi
  • Multi9 Multi9 N40 Vigi N40 Vigi
  • Multi9 Multi9 N40

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Warranty duration(in months) bmecat

18

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Package 1 bare product quantity

1

Accessory / separate part category

connection accessory

Lines description

3L + N

Total number of 18 mm modules

12

Number of ways

12 ways N + 3 L (balanced)

Poles configuration for 1 way

  • 1 x 3P + N
  • 1 x 3P
  • 3 x 1P + N

Connection pitch

9 mm

Distance between way

54 mm

Insulation

insulated

[ui] rated insulation voltage

440 V AC conforming to IEC 61439-1

[uimp] rated impulse withstand voltage

6 kV

Mounting location

top on tunnel type terminals

9 mm pitches

24

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

3 cm

Package 1 length

26.8 cm

Package 1 weight

127 g

Sustainable packaging

No

Bvb

Accepted

Packaging made with recycled cardboard

Yes

Scip number

12618b2a-bc0e-4c2d-bb7b-9185c26e01fe

China rohs label

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
