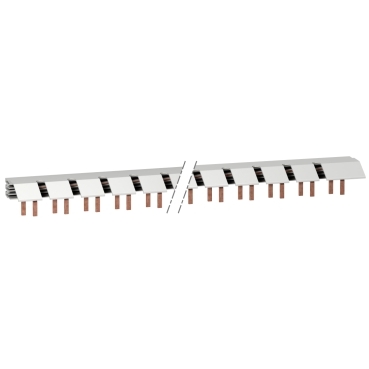

Acti9 Comb Busbar 1L+N with Aux, 9mm pitch, 56 modules, 63A

Item Number: A9N21035

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480504730	-
5	BB1	13606480504737	-

Specifications

Design

Range	Acti9
Product or component type	comb busbar
Warranty	18 months

Physical

Mounting mode	horizontal
Standards	EN/IEC 61439-1
Connector type	tooth
Marking	N L
Device presentation	cuttable
[ie] rated operational current	63 A at 40 °C
[ue] rated operational voltage	230 V AC Ph/N
Width	1000 mm
Range compatibility	Acti9 Acti9 C40 Acti9 Acti9 C40 Vigi Acti9 Acti9 DT40 Acti9 Acti9 DT40 Vigi Acti9 Acti9 iDPN Acti9 Acti9 iDPN Vigi Acti9 Acti9 ID C40 Acti9 Acti9 IDc Acti9 Acti9 ITG40 Multi9 Multi9 N40
Ip degree of protection	IP20 with end-pieces and tooth covers
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Brand labelled
Substance regulation data deliverable	Yes
	At least in Europe
Package 3 bare product quantity	80
Package 2 bare product quantity	5
Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Accessory / separate part category	connection accessory
Lines description	1L + N
Total number of 18 mm modules	56
Number of ways	37 ways Aux + N + 1 L
Poles configuration for 1 way	1 x 1P + N
Connection pitch	9 mm between phase and neutral
Distance between way	27 mm
Insulation	insulated
[ui] rated insulation voltage	500 V AC conforming to IEC 61439-2
Mounting location	top on tunnel type terminals
9 mm pitches	112
Fire resistance	960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree	3 conforming to IEC 60947-7-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.000 cm
Package 1 width	12.000 cm
Package 1 length	101.000 cm
Package 1 weight	595.000 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	6.000 cm
Package 2 width	101.000 cm
Package 2 length	12.000 cm
Package 2 weight	2.978 kg
Unit type of package 3	P12
Number of units in package 3	80
Package 3 height	75.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	59.648 kg
Sustainable packaging	No
Take-back	No
Average percentage of recycled metal content	0 %
Scip number	12618b2a-bc0e-4c2d-bb7b-9185c26e01fe
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
