Specifications
Design
Range of product
OptiLine 50
Product or component type

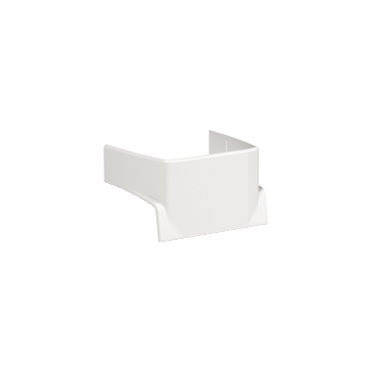

T-piece
Colour tint
white (RAL 9010)
Warranty
18 months
Physical
Quantity per set
1 piece
Length
101 mm
Height
52 mm
Width
63 mm
Ambient air temperature for operation
-25...60 °C
Ip degree of protection
IP40
Ik degree of protection
IK07
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP090918EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
PC/ABS
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
At least in Europe
Weee label
No
Trunking dimension
80 x 63 mm
Trunking material
- plastic
- aluminium
Cms inst product add info
for vertical trunking 80 and horizontal trunking 100, 120, 140
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.3 cm
Package 1 width
9.9 cm
Package 1 length
13.2 cm
Package 1 weight
28 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
