Specifications
Design
Range of product

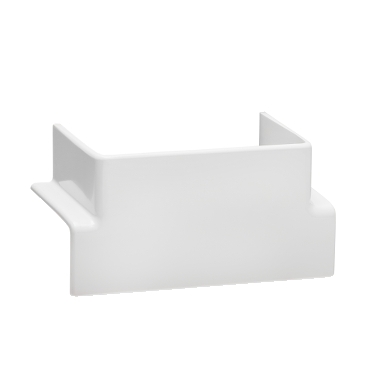

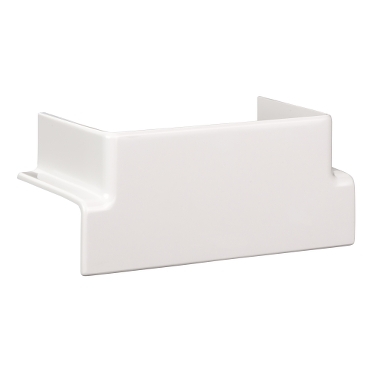

OptiLine 70
Product or component type
T-piece
Colour tint
polar white (RAL 9003)
Physical
Quantity per set
set of 1
Fixing mode
snap-fitted
Length
102 mm
Height
52 mm
Width
57 mm
Standards
- 73/23/EEC
- 93/68/EEC
- EN 50085-1:2005
- EN 50085-1:2013/A1
- EN 50085-2-1:2006
- NF C 68-102
- EN 50085-2-1:2011/A1
Ambient air temperature for operation
-25...60 °C
Ip degree of protection
IP40
Ik degree of protection
IK07
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP060310EN
Circularity profile
N/A
Material
Material
PC/ABS
Others
Package 1 bare product quantity
1
Cabling installation system
trunking
Trunking material
plastic
Trunking dimension
- 120 x 55 mm
- 155 x 55 mm
- 80 x 55 mm
- 95 x 55 mm
- 185 x 55 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.2 cm
Package 1 width
5.7 cm
Package 1 length
10.2 cm
Package 1 weight
29 g
