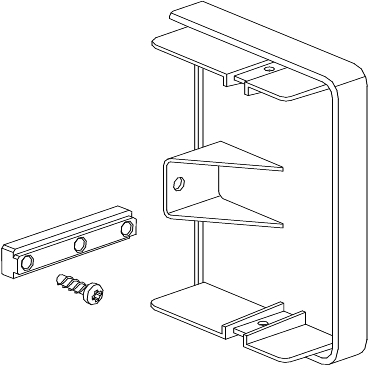

OptiLine 70, stop end, PC/ABS, aluminium metallic

OptiLine 70, stop end, PC/ABS, aluminium metallic

Item Number: ISM11354

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Market segment

small commercial|residential

Range of product

OptiLine 70

Product or component type

stop end

Colour tint

aluminium metallic

Warranty

18 months

Physical

Quantity per set

set of 2

Fixing mode

screw|snap-fitted

Length

21 mm

Height

124 mm

Width

56 mm

Standards

73/23/EEC|93/68/EEC|EN 50085-1:2005|EN 50085-1:2013/A1|EN 50085-2-1:2006|NF C 68-102|EN 50085-2-1:2011/A1

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP40

Ik degree of protection

IK07

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP060309EN

Circularity profile

N/A

Material

Material

PC/ABS painted

Others

Package 1 bare product quantity

1

Cabling installation system

trunking

Trunking material

aluminium

Trunking dimension

120 x 55 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.4 cm

Package 1 width

5.6 cm

Package 1 length

2.1 cm

Package 1 weight

30 g

Unit type of package 2

BAG

Number of units in package 2

150

Package 2 height

30 cm

Package 2 width

29.9 cm

Package 2 length

39.8 cm

Package 2 weight

5.206 kg

Unit type of package 3

PAL

Number of units in package 3

1200

Package 3 height

45 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

53.648 kg
