Home ProductsCable ManagementOptiLinestop end

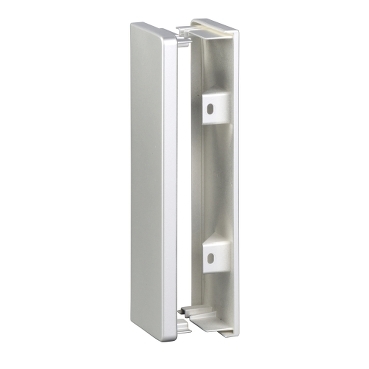

OptiLine 45 stop end PC/ABS, aluminium metallic

Item Number: ISM10554

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480028366	-

Specifications

Design

Market segment	residential small commercial
Range of product	OptiLine 45 OptiLine 70
Product or component type	stop end
Colour tint	aluminium metallic

Physical

Quantity per set	set of 2

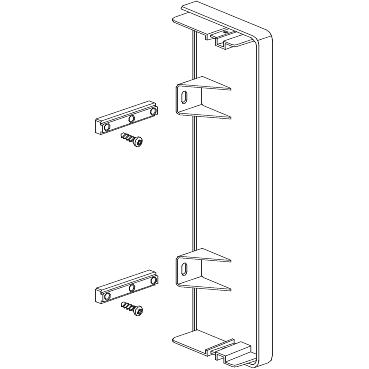

Fixing mode	snap-fitted screw
Length	21 mm
Height	189 mm
Width	56 mm
Standards	73/23/EEC 93/68/EEC EN 50085-1:2005 EN 50085-1:2013/A1 EN 50085-2-1:2006 NF C 68-102 EN 50085-2-1:2011/A1
Ambient air temperature for operation	-25...60 °C
Ip degree of protection	IP30
Ik degree of protection	IK07
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

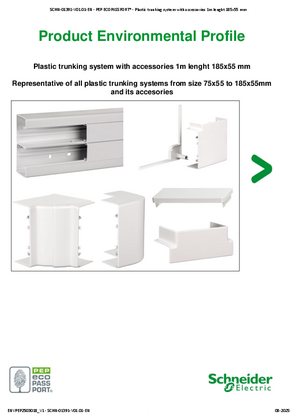

Environmental disclosure	ENVPEP2503018EN
Eu rohs directive	Compliant

Material

Material	PC/ABS painted

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessories
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	2
Package 3 bare product quantity	2
Package 4 bare product quantity	100
Package 5 bare product quantity	800
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Weee applicability	Finished product
Weee exclusion rationale	Product/component not in scope – not electric/electronic device
Cabling installation system	trunking
Trunking material	aluminium
Trunking dimension	185 x 55 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.000 cm
Package 1 width	18.900 cm
Package 1 length	5.600 cm
Package 1 weight	44.000 g
Unit type of package 2	BAG
Number of units in package 2	2
Package 2 height	3.700 cm
Package 2 width	21.500 cm
Package 2 length	9.000 cm
Package 2 weight	108.000 g
Unit type of package 3	BB1
Number of units in package 3	2
Package 3 height	2.500 cm
Package 3 width	20.000 cm
Package 3 length	27.000 cm
Package 3 weight	110.000 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.2706771779210066
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.010692648513319315
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02094446216097852
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.12522513743799077
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.4275394260332952
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
