Specifications
Design
Range of product
OptiLine 50
Product or component type

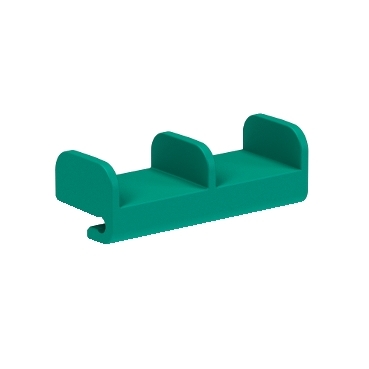

spacer
Colour tint
green
Warranty
18 months
Physical
Quantity per set
1 piece
Length
30 mm
Height
10 mm
Width
12 mm
Ambient air temperature for operation
-25...60 °C
Ip degree of protection
IP40
Ik degree of protection
IK07
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP090918EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
PC/ABS
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Weee label
No
At least in Europe
Trunking dimension
- 120 x 63 mm
- 140 x 63 mm
Trunking material
- plastic
- aluminium
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1 cm
Package 1 width
1.2 cm
Package 1 length
3 cm
Package 1 weight
8 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
