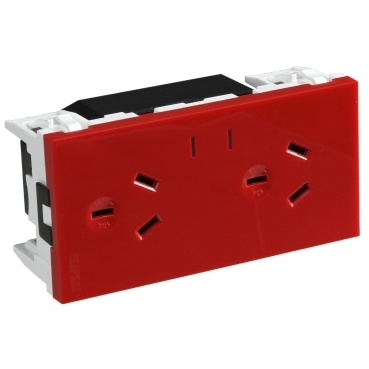

OptiLine 50, Socket outlet 16A, twin fascia Vertical for Australian standard, Red

Home ProductsCable ManagementOptiLineSocket outlet 16A, twin fascia Vertical for Australian standard, Red

OptiLine 50, Socket outlet 16A, twin fascia Vertical for Australian standard, Red

Item Number: INS62025

Where To Buy

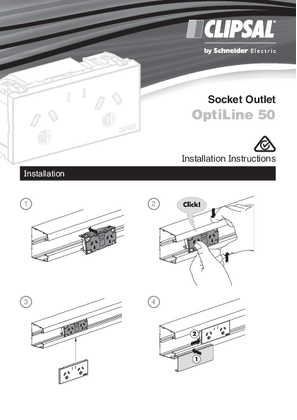

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 50

Product or component type

socket-outlet

Colour tint

red (RAL 3003)

Physical

Outlet standard

Australian

Quantity per set

set of 5

Number of power socket outlets

2

Fixing mode

snap-fitted

Length

100 mm

Height

50 mm

Width

46.5 mm

Ambient air temperature for operation

-5...40 °C

Ip degree of protection

IP20

Eu rohs directive

Under investigation

Material

Material

PC/ABS

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.65 cm

Package 1 width

4.96 cm

Package 1 length

9.95 cm

Package 1 weight

0.107 kg
Show all specifications
