Specifications
Design
Range of product
OptiLine 50
Product or component type

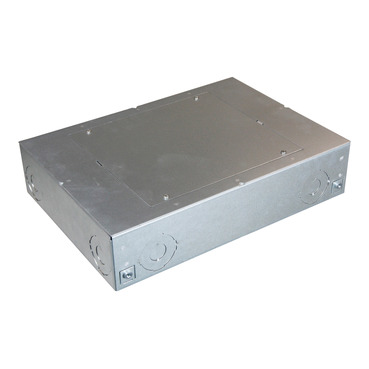

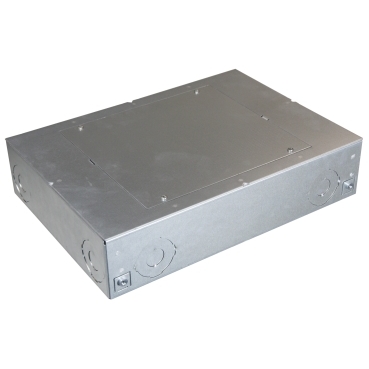

screeded floor box
Physical
Quantity per set
set of 1
Length
400 mm
Height
90 mm
Width
295 mm
Ip degree of protection
IP20
Ik degree of protection
IK07
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
sheet steel zinc coated
Others
Package 1 bare product quantity
1
Cabling installation system
screeded floor box
Type of floor
raised floor|in-cavity floor|hollow core floor
Number of modules
12 modules
Maximum load
10000 N
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
20 cm
Package 1 width
39 cm
Package 1 length
44.5 cm
Package 1 weight
5 kg
