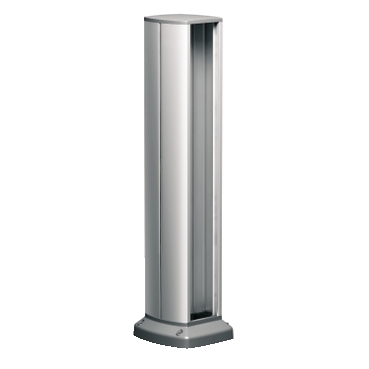

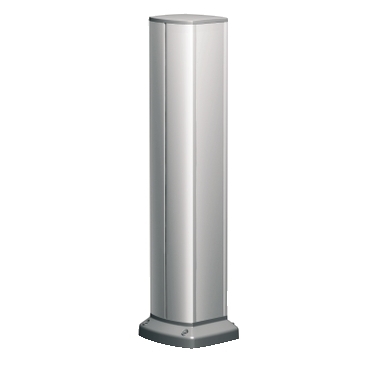

OptiLine 70 Post two-sided, natural, 613mm

Qty	UoM	EAN	Colour
1	PCE	3606480030321	-

Specifications

Design

Range of product	OptiLine 70
Product or component type	post
Colour tint	natural
Market segment	residential small commercial
Warranty	18 months

Physical

Fixing mode	screw-fixed
Quantity per set	set of 1
Height	613 mm
Width	164 mm
Standards	73/23/EEC 93/68/EEC EN-AW-6063 IEC 1084-2-4 SS 424 10 32
Ambient air temperature for operation	-25...60 °C
Ip degree of protection	IP40
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP060309EN
Eu rohs directive	Compliant

Material

Material	aluminium anodized

Others

Package 1 bare product quantity	1
Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Cabling installation system	post
Type of post	two-sided
Pole/post surface finish	anodized
Front opening size	70 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	15.4 cm
Package 1 width	16.4 cm
Package 1 length	61.3 cm
Package 1 weight	1.42 kg
Unit type of package 2	P12
Number of units in package 2	12
Package 2 height	62.0 cm
Package 2 width	80.0 cm
Package 2 length	120.0 cm
Package 2 weight	29.04 kg
Sustainable packaging	No
End of life manual availability	N/A
Warranty (in months)	18
