Specifications
Design
Range of product

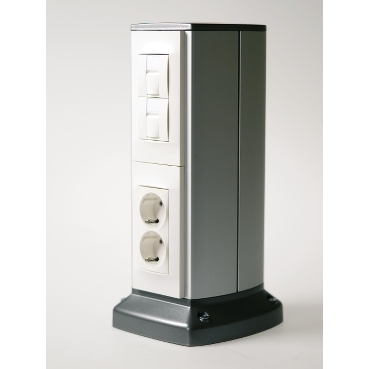

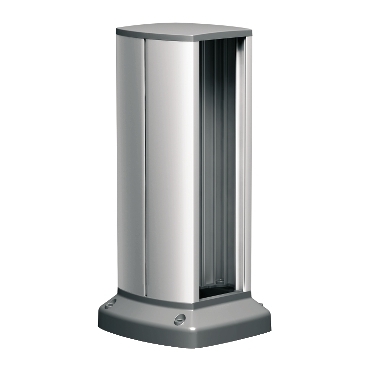

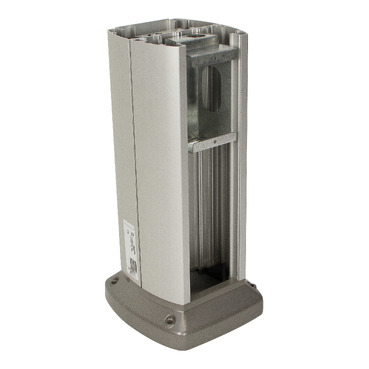

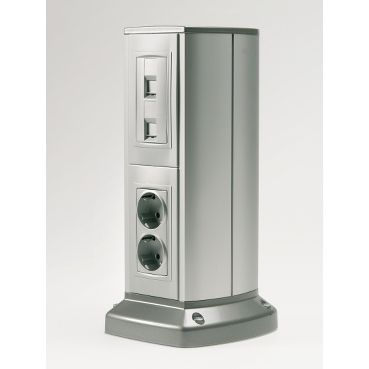

OptiLine 70
Product or component type
post
Colour tint
natural
Market segment
- small commercial
- residential
Warranty
18 months
Physical
Fixing mode
screw-fixed
Quantity per set
set of 1
Height
333 mm
Width
164 mm
Standards
- 73/23/EEC
- 93/68/EEC
- EN-AW-6063
- IEC 1084-2-4
- SS 424 10 32
Ambient air temperature for operation
-25...60 °C
Ip degree of protection
IP40
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP060309EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
aluminium anodized
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Weee label
No
At least in Europe
Cabling installation system
post
Type of post
two-sided
Pole/post surface finish
anodized
Front opening size
70 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
16.0 cm
Package 1 width
17.5 cm
Package 1 length
36.5 cm
Package 1 weight
1.781 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
