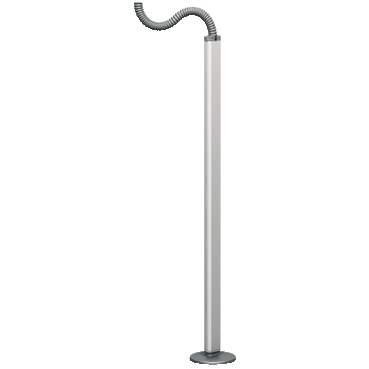

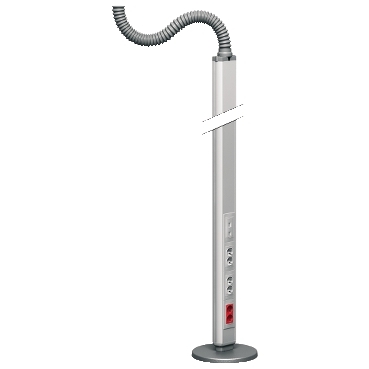

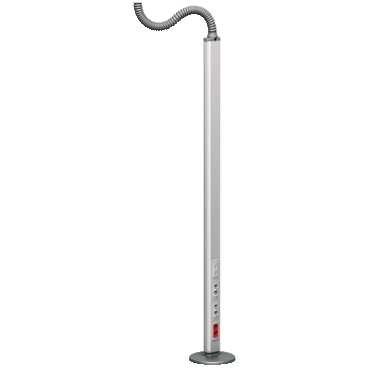

OptiLine 70 Pole free-standing, one-sided, natural, 2385mm

OptiLine 70 Pole free-standing, one-sided, natural, 2385mm

Item Number: ISM20520

Datasheet

Product Dimensions

Width icon

Width61 mm

Height icon

Height2385 mm

Depth icon

Depth120 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 70

Range

OptiLine

Product or component type

pole

Market segment

  • residential
  • small commercial

Warranty

18 months

Physical

Device presentation

empty

Quantity per set

set of 1

Height

2385 mm

Depth

120 mm

Width

61 mm

Standards

  • 73/23/EEC
  • 93/68/EEC
  • IEC 1084-2-4
  • SS 424 10 32
  • EN-AW-6063

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP40

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP060309EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Product name

OptiLine 70

Shape

oval

Cabling installation system

pole

Type of pole

one-sided

Pole/post surface finish

anodized

Pole fixing mode

free-standing

Adjustment

fixed: 0-0 mm

Front opening size

70 mm

Cover type

2 closed cover cover 70 mm in aluminium anodized

Cable cross section

4256 mm²

Compartment partitioning

1 compartment

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.1 cm

Package 1 width

12.0 cm

Package 1 length

238.5 cm

Package 1 weight

6.15 kg

Unit type of package 2

PAL

Number of units in package 2

28

Package 2 height

64.9 cm

Package 2 width

255.0 cm

Package 2 length

120.0 cm

Package 2 weight

207.116 kg

Scip number

ce89f989-36a8-4890-9b3e-79150ca1abc2
