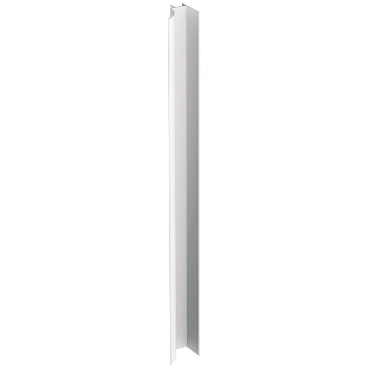

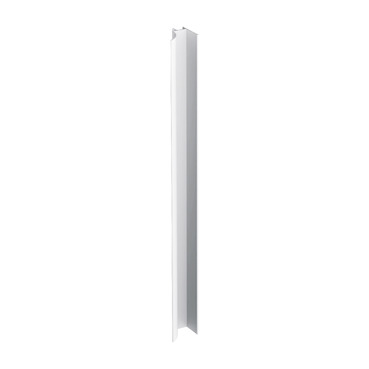

OptiLine 70 partition profile white

Qty	UoM	EAN	Colour
1	PCE	3606480030222	-

Specifications

Design

Range of product	OptiLine 50 OptiLine 70
Product or component type	partition profile
Colour tint	white (RAL 9010)
Market segment	small commercial residential
Warranty	18 months

Physical

Quantity per set	set of 10
Fixing mode	snap-fitted
Length	50 mm
Height	500 mm
Width	49 mm
Ambient air temperature for operation	-25...60 °C
Ip degree of protection	IP40
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP060309EN
Eu rohs directive	Compliant

Material

Material	ABS (acrylonitrile butadiene-styrene)

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Cabling installation system	pole
Type of pole	one-sided two-sided
Pole/post surface finish	anodized powder coated
Pole fixing mode	free-standing tension-mounted
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.9 cm
Package 1 width	50.0 cm
Package 1 length	5.0 cm
Package 1 weight	96.0 g
Unit type of package 2	CAR
Number of units in package 2	10
Package 2 height	13.0 cm
Package 2 width	15.5 cm
Package 2 length	102.5 cm
Package 2 weight	1.368 kg
Unit type of package 3	PAL
Number of units in package 3	300
Package 3 height	90.0 cm
Package 3 width	80.0 cm
Package 3 length	120.0 cm
Package 3 weight	67.04 kg
Sustainable packaging	No
End of life manual availability	N/A
Warranty (in months)	18
