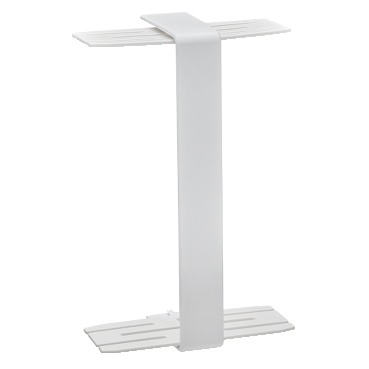

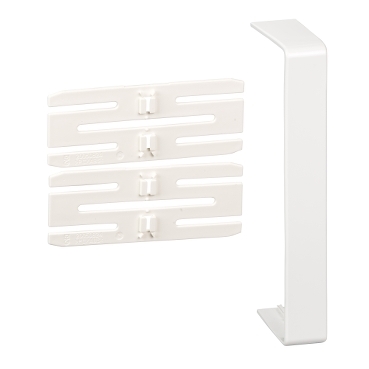

OptiLine 70 joint cover piece 155 x 55mm, PC/ABS, polar white

Home ProductsCable ManagementOptiLinejoint cover piece

OptiLine 70 joint cover piece 155 x 55mm, PC/ABS, polar white

Item Number: ISM11406P

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 70

Product or component type

joint cover piece

Colour tint

polar white (RAL 9003)

Physical

Quantity per set

set of 1

Fixing mode

snap-fitted

Length

100 mm

Height

160 mm

Width

57 mm

Standards

  • 73/23/EEC
  • 93/68/EEC
  • EN 50085-1:2005
  • EN 50085-1:2013/A1
  • EN 50085-2-1:2006
  • NF C 68-102
  • EN 50085-2-1:2011/A1

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP40

Ik degree of protection

IK07

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060310EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC/ABS

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

At least in Europe

Weee label

No

Cabling installation system

trunking

Trunking material

plastic

Trunking dimension

155 x 55 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.3 cm

Package 1 width

6.0 cm

Package 1 length

16.0 cm

Package 1 weight

37.0 g

Unit type of package 2

S03

Number of units in package 2

75

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

3.375 kg

Sustainable packaging

Yes

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications
