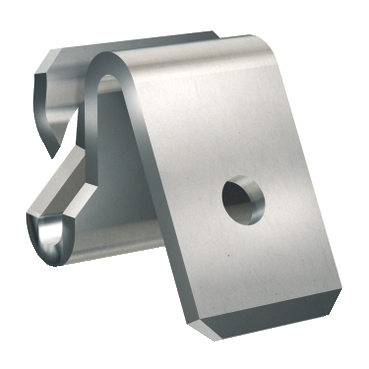

OptiLine 45, Earthing Device

OptiLine 45, Earthing Device

Item Number: ISM10952

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 70|OptiLine 50|OptiLine 45

Product or component type

earthing device

Product compatibility

Altira wiring device|Unica wiring device

Market segment

residential|small commercial

Warranty

18 months

Physical

Device presentation

empty

Quantity per set

set of 20

Length

9 mm

Height

9 mm

Width

9 mm

Standards

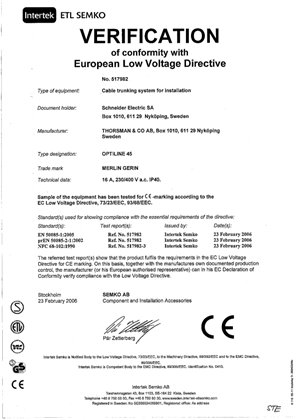

73/23/EEC|93/68/EEC|EN 50085-1:2005|EN 50085-2-1:2002|NF C 68-102

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP30

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060309EN

Circularity profile

N/A

Material

Material

steel

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

20

Package 3 bare product quantity

80

Cabling installation system

service box|trunking|post|pole

Type of pole

two-sided|one-sided

Type of post

two-sided|one-sided

Type of service box

service box kit

Trunking material

aluminium

Trunking dimension

75 x 55 mm|155 x 55 mm|165 x 55 mm|185 x 55 mm|120 x 55 mm|140 x 55 mm|95 x 55 mm|80 x 55 mm

Pole/post surface finish

anodized|powder coated

Pole fixing mode

tension-mounted|free-standing

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.890 cm

Package 1 width

0.900 cm

Package 1 length

0.900 cm

Package 1 weight

1.100 g

Unit type of package 2

BB1

Number of units in package 2

20

Package 2 height

1.000 cm

Package 2 width

8.000 cm

Package 2 length

12.000 cm

Package 2 weight

25.000 g

Unit type of package 3

S01

Number of units in package 3

80

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

285.000 g
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Technical Data Catalogues

  • Other technical guide

  • Environmental Disclosure

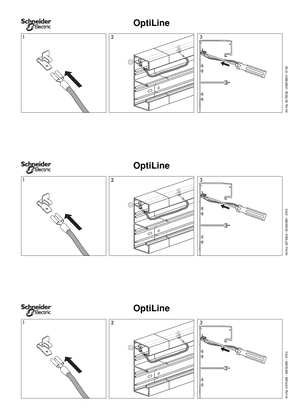

  • Operating Manuals
