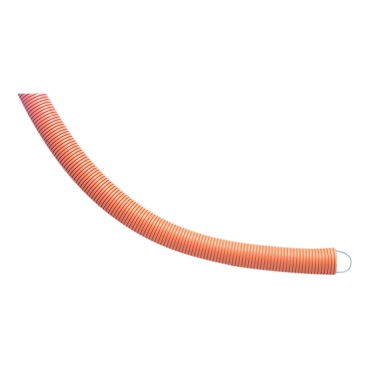

Clipsal - Cable Management Corrugated Conduit Heavy Duty, PVC, 20mmx50m | Electric Orange
Item Number: 9020CHD-EO
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Physical
Environmental characteristic
conforming to AS/NZS 61386
Ambient air temperature for operation
-15...60 °C
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP100108EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Product out of China RoHS scope
Eu rohs directive
Compliant
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
PVC (polyvinyl chloride)
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Weee label
N/A
Warranty duration(in months) bmecat
18
Outside of Europe
Stub stiffness
flexible
Diameter
internal: 13.4 mm
External diameter
20 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
19.2 cm
Package 1 width
32.2 cm
Package 1 length
32.2 cm
Package 1 weight
5.72 kg
Sustainable packaging
No
China rohs label
1
End of life manual availability
N/A
Warranty (in months)
18
Documents & downloads
Filter items
-
All
-

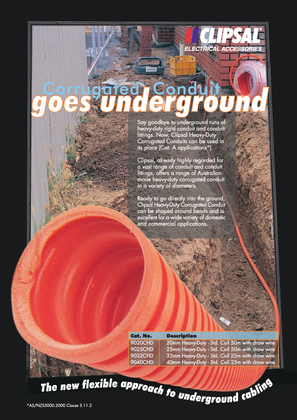

Product Brochures
-
Technical Data Catalogues
-
Specification Guide
-

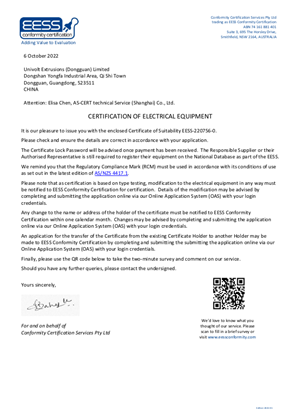

Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
