Specifications
Design
Product brand
Clipsal
Range of product
Series 279AC
Product or component type

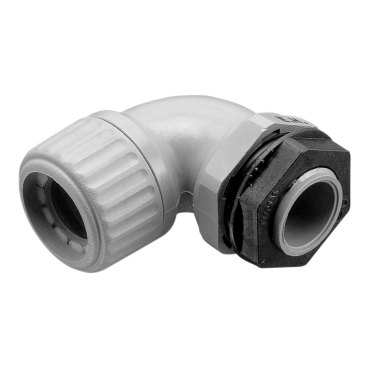

elbow
Physical
Cable outer diameter
32 mm
Ip degree of protection
IP54
Ambient air temperature for operation
-15...65 °C
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Environmental disclosure
ENVPEP100802EN
Circularity profile
N/A
Material
Material
PVC (polyvinyl chloride)
Device composition
lock nut
Others
Package 1 bare product quantity
1
Thread type
M32
Threaded length
1.5 mm
Operating angle
90 °
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.066 kg
