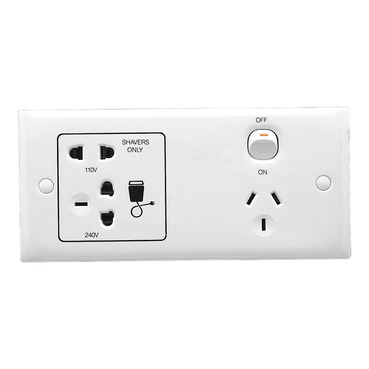

Standard Series, Universal Shaver Socket Outlet, 240/110VAC, Horizontal

Home ProductsPower Points and SwitchesStandard SeriesUniversal Shaver Socket Outlet, 240/110VAC, Horizontal

Standard Series, Universal Shaver Socket Outlet, 240/110VAC, Horizontal WE

Item Number: 727H-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

110/240 V AC

Depth

18 mm

Length

184 mm

Width

85 mm

Fixing center

152 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.9 cm

Package 1 width

10.8 cm

Package 1 length

20.0 cm

Package 1 weight

809.0 g
