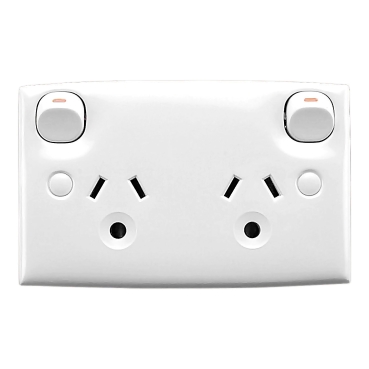

Standard Series, Switched Socket, Twin Double Pole 10A Ltg White Electric
Item Number: 25DL-WE
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
switched socket
Product brand
Clipsal
Surface finish
glossy
Physical
Control type
ON/OFF button
Number of gangs
2 gangs
Pin number
3
Number of power socket outlets
2
Actuator
rocker|switch
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Depth
16 mm
Length
115 mm
Width
73 mm
Fixing center
84 mm
Standards
AS/NZS 3100|AS/NZS 3112|AS/NZS 3133|AS/NZS 3000:approval number S/1
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6 cm
Package 1 width
7.3 cm
Package 1 length
11.5 cm
Package 1 weight
152.25 g
