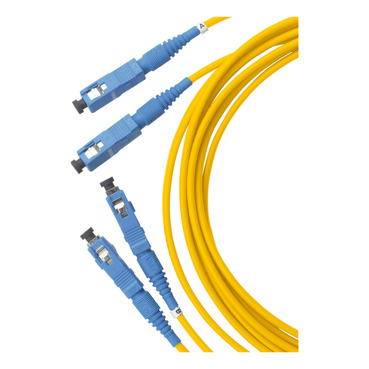

Clipsal Actassi Fibre Patch Cord Sc Duplex 9/125Um, Os1, 1 Mode, Sm 1.0 Metre

Home ProductsNetwork ConnectivityActassiFibre Patch Cord

Clipsal Actassi Fibre Patch Cord Sc Duplex 9/125Um, Os1, 1 Mode, Sm 1.0 Metre

Item Number: TFP2C3S19S10

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Titanium

Physical

Length

1 m

Connector type

  • 1 SC
  • 2 SC

Cable outer diameter

3.6.6 mm

Environmental characteristic

conforming to EN 50267-2-3

Ambient air temperature for operation

0...70 °C

Standards

  • ANSI/TIA/EIA-568-B-3
  • AS/NZS 3080:2003
  • ISO/IEC 11081

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1204014EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

  • zirconia: ferrule
  • ceramic: ferrule
  • TPE (thermoplastic elastomer): boot

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Outside of Europe

Warranty duration(in months) bmecat

18

Weee label

N/A

Optic fiber type

single mode

Optic fiber diameter

9/125 µm

Fibre performance

OS1

Exchange mode

duplex

Attenuation

1.5 dB

Flame retardance

UL94-V0

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

48 g

Sustainable packaging

No

China rohs label

1

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications
