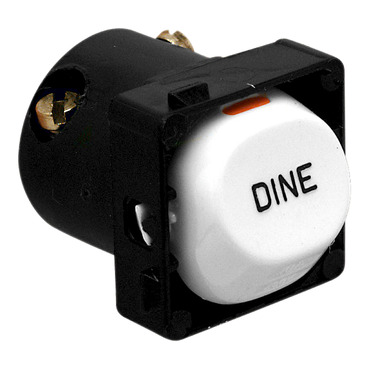

30 Series, Switch Mechanism, 10A, Marked DINE

30 Series, Switch Mechanism, 10A, Marked DINE WE

Item Number: 30DM-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 30|Standard Series

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Number of poles

1

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

10 A

Marking

dine

Fixing mode

clip-in

Actuator

rocker

Switch function

1-pole

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Commercial status history

SESA65410 | Tue Mar 19 00:15:00 EDT 2024 | From Import Local | From 19 to 18

Package 1 bare product quantity

1

Marking location

marking on surface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.4 cm

Package 1 width

2.4 cm

Package 1 length

3 cm

Package 1 weight

13.9 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.9 cm

Package 2 width

5.5 cm

Package 2 length

11.5 cm

Package 2 weight

160 g

Unit type of package 3

CAR

Number of units in package 3

500

Package 3 height

23.7 cm

Package 3 width

20.3 cm

Package 3 length

30 cm

Package 3 weight

8 kg
