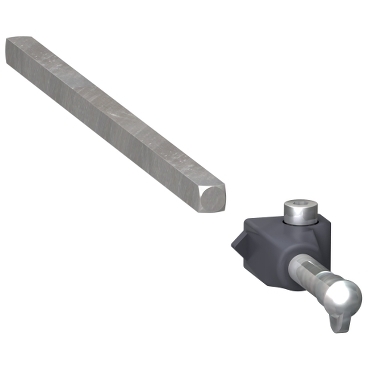

TeSys U Long shaft for rotary handle TeSys Deca-U,length 315mm

Item Number: GVAPA1

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480313554	-

Specifications

Design

Range of product	TeSys GV2 TeSys GV3 TeSys U
Range	TeSys
Product or component type	long shaft
Product compatibility	GVAPB54 GVAPR54 GVAPB65 GVAPR65
Warranty	18 months

Physical

Length	315 mm
Net weight	0.11 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2207006EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	acc
Substance regulation data deliverable	Yes
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	100
Package 1 bare product quantity	1
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	GVAP
Accessory / separate part category	control accessory
Compatibility code	GVAP
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.000 cm
Package 1 width	2.000 cm
Package 1 length	32.000 cm
Package 1 weight	107.000 g
Unit type of package 2	S03
Number of units in package 2	100
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	10.764 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	66ab381c-81b1-42a8-ae7a-ce3f5adb691a
China rohs label	3
End of life manual availability	ENVEOLI2207006
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications
