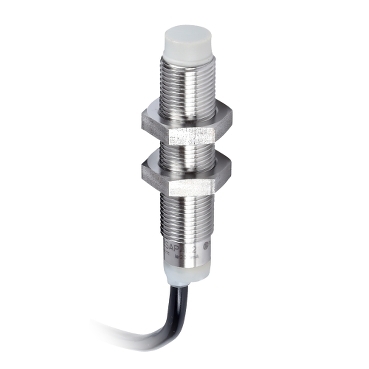

OsiSense XS & XT, Inductive Sensor, XS6 M12, L54mm, brass, Sn4mm, 12...48 VDC, cable 2 m

Home ProductsIndustrialOsiSenseInductive Sensor

OsiSense XS & XT, Inductive Sensor, XS6 M12, L54mm, brass, Sn4mm, 12...48 VDC, cable 2 m

Item Number: XS612B1NAL2

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Telemecanique Inductive proximity sensors XS

Device application

mobile equipment

Warranty

18 months

Physical

Sensor type

inductive proximity sensor

Ip degree of protection

IP68 double insulation conforming to IEC 60529|IP69K conforming to DIN 40050

Marking

CE

Length

54 mm

Net weight

0.075 kg

Product certifications

E2|CSA|UL

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111006EN

Circularity profile

ENVEOLI1110045

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

metal

Others

Commercial status history

SESA301466 | Mon Jul 17 19:50:00 EDT 2023 | From Import Local | From 08 to 18

Important message

We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com

Package 1 bare product quantity

1

Series name

general purpose

Sensor name

XS6

Sensor design

cylindrical M12

Size

54 mm

Body type

fixed

Detector flush mounting acceptance

flush mountable

Type of output signal

discrete

Wiring technique

3-wire

[sn] nominal sensing distance

4 mm

Discrete output function

1 NO

Output circuit type

DC

Discrete output type

NPN

Electrical connection

cable

Cable length

2 m

[us] rated supply voltage

12...48 V DC with reverse polarity protection

Switching capacity in ma

<= 200 mA DC with overload and short-circuit protection

Thread type

M12 x 1

Detection face

frontal

Front material

PPS

Enclosure material

nickel plated brass

Sensing range

> 2.5...4 mm

Operating zone

0...3.2 mm

Differential travel

1...15% of Sr

Cable composition

3 x 0.34 mm²

Wire insulation material

PVC

Status led

output state: 1 LED (yellow)

Supply voltage limits

10...58 V DC

Switching frequency

<= 2500 Hz

Maximum voltage drop

<2 V (closed)

Current consumption

<= 10 mA no-load

Maximum delay first up

10 ms

Maximum delay response

0.2 ms

Maximum delay recovery

0.2 ms

Threaded length

42 mm

Vibration resistance

25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.700 cm

Package 1 width

11.000 cm

Package 1 length

14.600 cm

Package 1 weight

82.000 g

Unit type of package 2

S03

Number of units in package 2

44

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.193 kg

Scip number

3bc2f5da-1620-4d53-878c-410a857f3212

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
