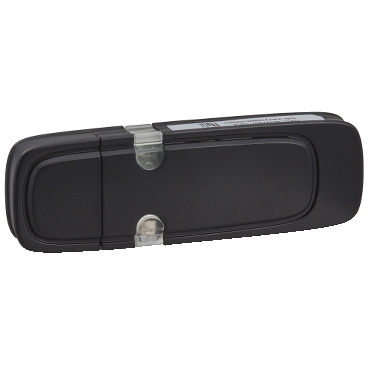

Com'X WiFi transmitter for Com'X 200/210/510

Item Number: EBXA-USB-WIFI

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width81.6 mm

Height icon

Height26 mm

Depth icon

Depth11.48 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

PowerLogic

Range

PowerLogic

Product or component type

USB interface

Physical

Number of channels

1

Communication port protocol

  • TCP/IP
  • PPPoE (Point-to-Point Protocol over Ethernet)
  • USB

Communication network type

Wi-Fi

Height

26 mm

Depth

11.48 mm

Ambient air temperature for operation

0...50 °C

Ambient air temperature for storage

-20...80 °C

Standards

IEEE 802.11b/g/n

Product certifications

CE

Width

81.6 mm

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Bandwidth

  • 2412...2462 MHz FCC conforming to IEEE 802.11b/g
  • 2412...2472 MHz ETSI conforming to IEEE 802.11b/g
  • 2412...2472 MHz TELEC conforming to IEEE 802.11b/g
  • 2422...2452 MHz FCC conforming to IEEE 802.11g/n
  • 2422...2462 MHz ETSI conforming to IEEE 802.11g/n
  • 2422...2462 MHz TELEC conforming to IEEE 802.11g/n

Transmission rate

  • 150 Mbit/s (MCS7, 40 MHz) conforming to IEEE 802.11n
  • 65 Mbit/s (MCS7, 20 MHz) conforming to IEEE 802.11n
  • 54 Mbit/s conforming to IEEE 802.11g
  • 11 Mbit/s conforming to IEEE 802.11b

Radio power

  • 14.5 dBm 54 Mbit/s conforming to IEEE 802.11g
  • 12.5 dBm 150 Mbit/s (MCS7, 40 MHz) conforming to IEEE 802.11n
  • 15.5 dBm 48 Mbit/s conforming to IEEE 802.11g
  • 17 dBm 6...36 Mbit/s conforming to IEEE 802.11g
  • 17 dBm 1, 2, 5.5, 11 Mbit/s conforming to IEEE 802.11b
  • 16.5 dBm 6.5...52 Mbit/s (MCS0...5, 20 MHz) conforming to IEEE 802.11n
  • 14.5 dBm 52 Mbit/s (MCS6, 20 MHz) conforming to IEEE 802.11n
  • 12.5 dBm 65 Mbit/s (MCS7, 20 MHz) conforming to IEEE 802.11n
  • 15 dBm 15...120 Mbit/s (MCS0...5, 40 MHz) conforming to IEEE 802.11n
  • 14.5 dBm 135 Mbit/s (MCS6, 40 MHz) conforming to IEEE 802.11n

Receiver sensitivity

  • - 90 dBm conforming to IEEE 802.11b 1 Mbit/s
  • - 90 dBm conforming to IEEE 802.11g 6 Mbit/s
  • - 71 dBm conforming to IEEE 802.11g 54 Mbit/s
  • - 90 dBm conforming to IEEE 802.11n 6.5 Mbit/s (MCS0, 20 MHz)
  • - 67 dBm conforming to IEEE 802.11n 65 Mbit/s (MCS7, 20 MHz)
  • - 90 dBm conforming to IEEE 802.11b 15 Mbit/s (MCS0, 40 MHz)
  • - 71 dBm conforming to IEEE 802.11b 150 Mbit/s (MCS7, 40 MHz)

Encryption protocol

  • AES (Advanced Encryption Standard) WPA2-PSK
  • TKIP WPA-PSK
  • PEAP WPA2
  • EAP-TLS WPA
  • EAP-TTLS WPA
  • WEP 64 WEP
  • WEP 128 WEP

[us] rated supply voltage

5 V DC

Current consumption

  • TX (transmission) <= 350 mA for 5 V DC
  • RX (reception) <= 350 mA for 5 V DC

Compatibility code

USB interface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.2 cm

Package 1 width

4.4 cm

Package 1 length

9.3 cm

Package 1 weight

30 g

Sustainable packaging

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
