Specifications
Design
Range
Clipsal
Product or component type

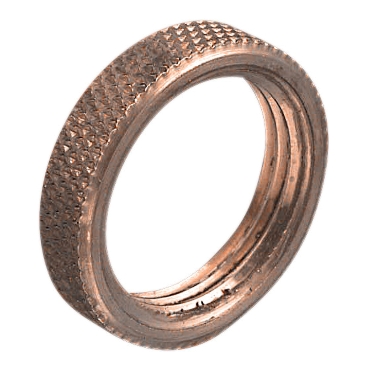

lock ring
Physical
Range compatibility
Clipsal
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
brass
Others
Package 1 bare product quantity
1
Commercial status history
- SESA301466
- Sun Nov 05 22:57:00 EST 2023
- From Import Local
- From 18 to 19
Accessory / separate part category
fixing accessory
Diameter
- external: 19 mm
- thread: 16 mm
Height pitch dimension
1.5 mm
Thickness
4.5 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.45 cm
Package 1 width
1.6 cm
Package 1 length
1.6 cm
Package 1 weight
0.006 kg
