Canalis KBA Tap off unit Canalis KB, 16A, polarity 3L+N+PE, with phase selection, direct connection

Item Number: KBC16DCB40

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width205 mm

Height68 mm

Depth38 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480002267	-

Specifications

Design

Range of product	Canalis
Range	Canalis
Product or component type	connector
Device application	lighting power socket distribution
Warranty	18 months

Physical

Range compatibility	Canalis KBA busbar trunking Canalis KBB busbar trunking
[ie] rated operational current	16 A at 35 °C
[ue] rated operational voltage	230...240 V

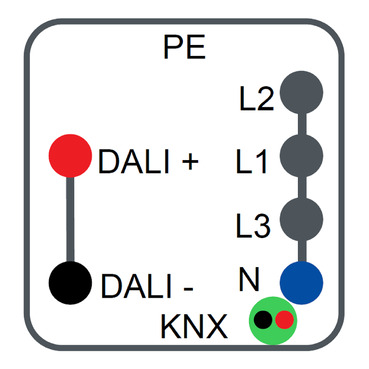

Communication port protocol	DALI KNX
Protection type	without protection
Width	205 mm
Depth	38 mm
Height	68 mm
Net weight	90 g

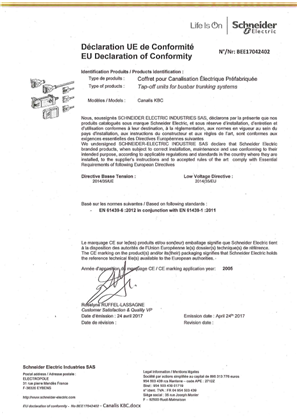

Standards	EN/IEC 61439-1 EN/IEC 61439-6
Ip degree of protection	IP55 conforming to EN/IEC 60529
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2404010EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	PEP is a configured as the final product, but at the CR level, which are not actually products, but different components go into the final product
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	18
Package 3 bare product quantity	144
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Offer type	control system
Network frequency	50/60 Hz

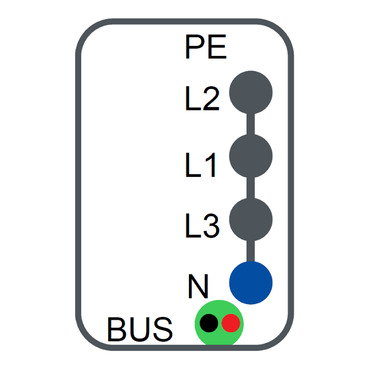

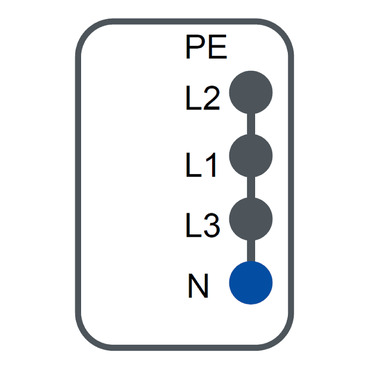

Tap-off unit polarity	3L+N+PE
Tap-off unit connector type	with fixed polarity
[uimp] rated impulse withstand voltage	4 kV
[ui] rated insulation voltage	690 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.000 cm
Package 1 width	8.000 cm
Package 1 length	18.000 cm
Package 1 weight	182.000 g
Unit type of package 2	S03
Number of units in package 2	18
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.804 kg
Unit type of package 3	P06
Number of units in package 3	144
Package 3 height	74.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	35.432 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
