Canalis KBA Tap off unit Canalis KB, 10A, polarity L+N+PE/2L+PE, with phase selection, direct connection

Item Number: KBC10DCB20

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width1 m

Height60 mm

Depth62 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480002076	-

Specifications

Design

Range of product	Canalis
Range	Canalis
Product or component type	connector
Device application	lighting power socket distribution
Warranty	18 months

Physical

Range compatibility	Canalis KBA busbar trunking Canalis KBB busbar trunking
[ie] rated operational current	10 A at 35 °C
[ue] rated operational voltage	230...240 V

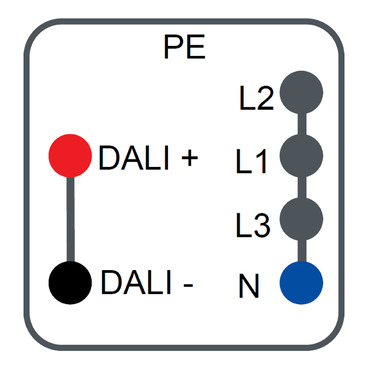

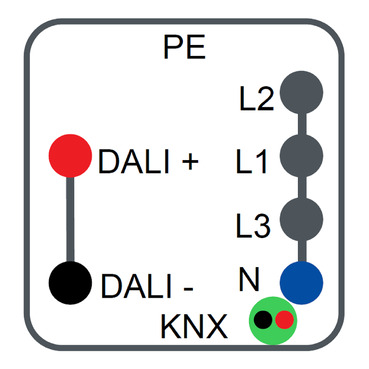

Communication port protocol	DALI
Protection type	without protection
Width	1 m
Depth	62 mm
Height	60 mm
Net weight	65 g
Quantity per set	set of 10

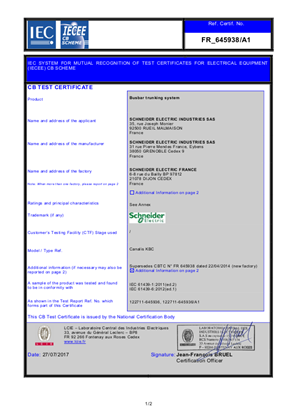

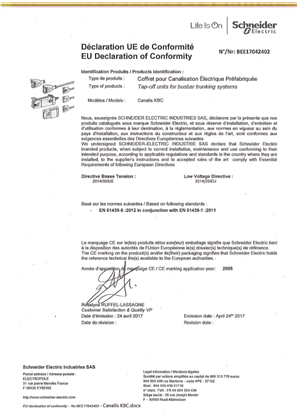

Standards	EN/IEC 61439-1 EN/IEC 61439-6
Ip degree of protection	IP55 conforming to EN/IEC 60529
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

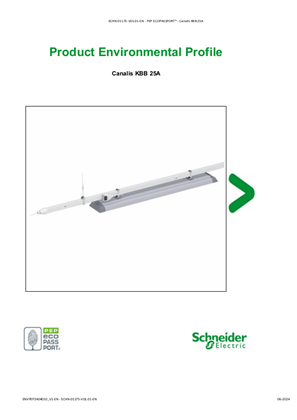

Environmental disclosure	ENVPEP2404010EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	PEP created standard configuration(Canalis KBA), but individual CR is component
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Package 3 bare product quantity	500
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Offer type	classic control system
Network frequency	50/60 Hz

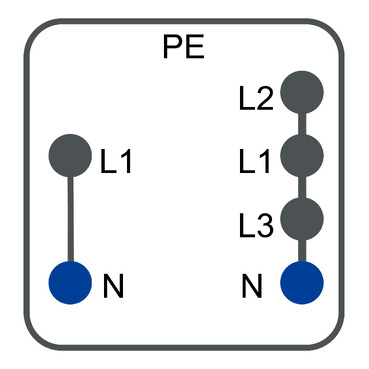

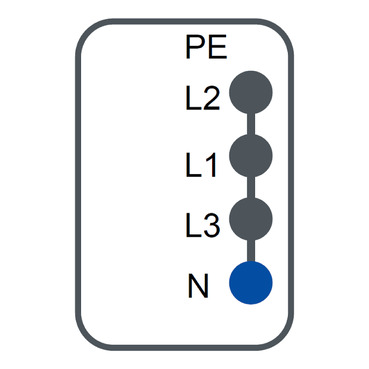

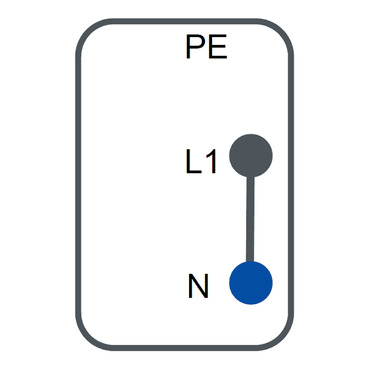

Tap-off unit polarity	L1 + N + PE L2 + N + PE L3 + N + PE L1 + L2 + PE L1 + L3 + PE L2 + L3 + PE
Tap-off unit connector type	with phase selection
[uimp] rated impulse withstand voltage	4 kV
[ui] rated insulation voltage	690 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.000 cm
Package 1 width	6.000 cm
Package 1 length	11.500 cm
Package 1 weight	68.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	12.500 cm
Package 2 width	13.600 cm
Package 2 length	32.000 cm
Package 2 weight	809.000 g
Unit type of package 3	P06
Number of units in package 3	500
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	45.450 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	a00ffde8-c8af-46f6-a6fd-9197f6ad975b
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
