Canalis KBA Tap-off unit - 16A phase selection, L+N+PE, with protection

Item Number: KBC16DCF21

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width168 mm

Height53 mm

Depth33 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480002281	-
10	CAR	13606480002288	-

Specifications

Design

Range of product	Canalis
Range	Canalis
Product or component type	connector
Device application	lighting
Warranty	18 months

Physical

Range compatibility	Canalis KBA busbar trunking Canalis KBB busbar trunking
[ie] rated operational current	16 A at 35 °C
[ue] rated operational voltage	230...400 V
Protection type	fuse
Communication port protocol	DALI
Provided equipment	fuse not supplied
Width	168 mm
Depth	33 mm
Height	53 mm
Net weight	90 g
Quantity per set	set of 10
Standards	EN/IEC 61439-6 EN/IEC 60439-2
Ip degree of protection	IP55 conforming to EN/IEC 60529
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2404010EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	PEP created standard configuration (Canalis KDP), but individual CR is component
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Offer type	classic control system
Network frequency	50/60 Hz
Busbar trunking polarity	L2 + L1 + L3 + N + PE L + N + PE
Fuse type	cylindrical: 8.5 x 31.5 mm - gG conforming to NF
Tap-off lock colour	blue

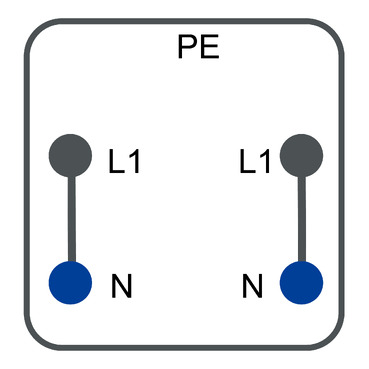

Tap-off unit polarity	L2 + N + PE L3 + N + PE L1 + N + PE
Tap-off unit connector type	with phase selection
[ui] rated insulation voltage	690 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.0 cm
Package 1 width	5.2 cm
Package 1 length	14.0 cm
Package 1 weight	94.0 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	12.0 cm
Package 2 width	16.0 cm
Package 2 length	25.0 cm
Package 2 weight	1.009 kg
Unit type of package 3	P06
Number of units in package 3	440
Package 3 height	61.5 cm
Package 3 width	80.0 cm
Package 3 length	60.0 cm
Package 3 weight	50.796 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Pvc free	Yes
Halogen-free status	Halogen free product
Silicone-free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
