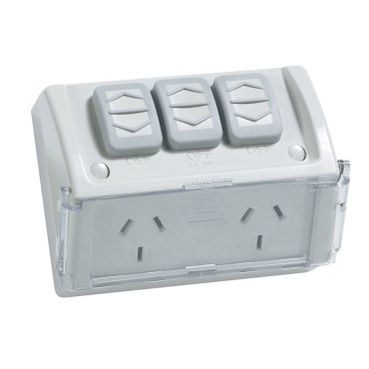

Weathershield Switched Socket Twin, Flush Mounting, 10A, 250V, with Extra Switch | Chemical Resistant White
Item Number: WSCF227/2X-RW
Datasheet
Close
Specifications
Design
Range
Clipsal
Product or component type
switched socket
Physical
Control type
switch
Number of power socket outlets
2
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Height
115 mm
Width
82 mm
Ip degree of protection
IP53
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP130201EN
Circularity profile
N/A
Material
Material
plastic
Others
Commercial status history
- SESA301466
- Fri Sep 22 10:16:00 EDT 2023
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.3 cm
Package 1 width
9.5 cm
Package 1 length
12.8 cm
Package 1 weight
280.0 g
Carbon footprint (kg.eq.co2 per cr, total life cycle)
4.691374954915964
Global warming ; total life cycle
5 kg CO2 eq.
