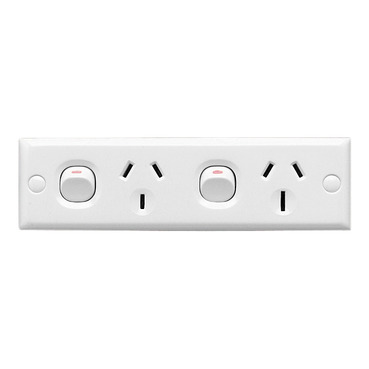

Standard Series, Twin Switch Socket Outlet, 250V, 10/15A, Skirt Mount for Ducting, Straight Side

Standard Series, Twin Switch Socket Outlet, 250V, 10/15A, Skirt Mount for Ducting, Straight Side White Electric

Item Number: 16/2MF1510-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

<ul><li>switch</li><li>rocker</li></ul>

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

<ul><li>15 A</li><li>10 A</li></ul>

Depth

18 mm

Length

156 mm

Width

44 mm

Fixing center

136 mm

Standards

<ul><li>AS/NZS 3100</li><li>AS/NZS 3112</li><li>AS/NZS 3133:approval number S/1</li></ul>

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Commercial status history

<ul><li>SESA301466</li><li>Wed Aug 14 22:49:00 EDT 2024</li><li>From Import Local</li><li>From 18 to 19</li></ul>

Package 2 bare product quantity

5

Package 1 bare product quantity

1

Distance between centers

145 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

4.5 cm

Package 1 length

15.5 cm

Package 1 weight

116 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

7.4 cm

Package 2 width

12 cm

Package 2 length

16.5 cm

Package 2 weight

630 g

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
