Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product brand
Clipsal
Physical

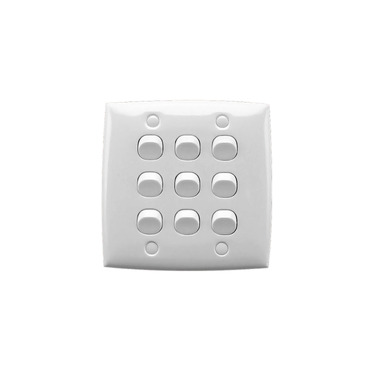

Device presentation
basic element with full cover plate
Device mounting
flush
Number of rocker
9
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
10 A
Marking
without marking
Actuator
rocker
Switch function
1-way|2-way
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.078 kg
