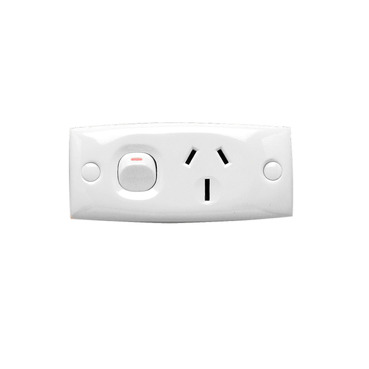

Standard Series, Single Switch Socket Outlet, 250V, 15A, Skirt Mount

Standard Series, Single Switch Socket Outlet, 250V, 15A, Skirt Mount WE

Item Number: 16/15-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

15 A

Depth

14 mm

Length

98 mm

Width

45 mm

Fixing center

78 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

5 cm

Package 1 length

10 cm

Package 1 weight

62 g
