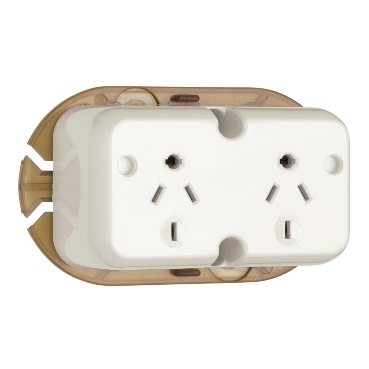

Standard Series Rear Connecting Surface Socket Twin 4 PIN, 250/440VAC, 10A | White Electric
Item Number: 414/4P-WE
Datasheet
Close
Specifications
Design
Product or component type
socket-outlet
Product brand
Clipsal
Physical
Quantity per set
set of 2
Marking
without marking
Local signalling
without light indicator
Device mounting
surface
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
250/440 V AC
Depth
46 mm
Length
112 mm
Width
65 mm
Fixing center
50 mm
Standards
- AS/NZS 3112
- AS 3100
- AS 3109
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
plastic
Others
Package 1 bare product quantity
1
Cover type
complete housing
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 cm
Package 1 width
8 cm
Package 1 length
13.8 cm
Package 1 weight
170 g
