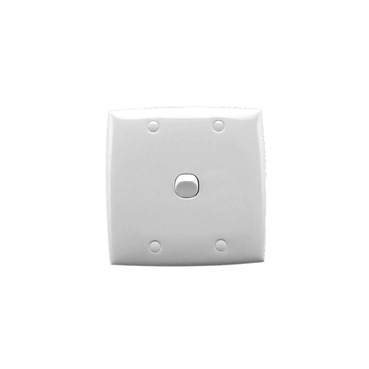

Standard Series, Flush Switch, 1 Gang, 250VAC, 10A, Large Format

Standard Series, Flush Switch, 1 Gang, 250VAC, 10A, Large Format White Electric

Item Number: 31/2VA-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Physical

Device presentation

basic element with full cover plate and grid

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

10 A

Marking

without marking

Fixing mode

by screws

Actuator

rocker

Switch function

  • 2-way
  • 1-way

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Commercial status history

  • SESA301466
  • Thu Aug 10 18:38:00 EDT 2023
  • From Import Local
  • From 18 to 19

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.8 cm

Package 1 width

11.6 cm

Package 1 length

11.6 cm

Package 1 weight

87.8 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

12.6 cm

Package 2 width

14.6 cm

Package 2 length

15.4 cm

Package 2 weight

0.522 kg

Unit type of package 3

CAR

Number of units in package 3

50

Package 3 height

30.2 cm

Package 3 width

35 cm

Package 3 length

35 cm

Package 3 weight

6.1 kg
Show all specifications

Documents & downloads

hide show

Frequently Asked Questions

hide show

What is the part number of the stud bracket to suit large format Prestige plates?

The part number of the stud bracket to suit large format Prestige plates is 156/2. It will suit all large format sized Prestige plates,  i.e. P2031/2VA, P2032/2VA, P2033/2VA, P2034/2VA, P2015X, P2015XX, P2015/2, P2015/2/15, P2025/2, P2025/2N, P2025/2/15.
For further information please refer to the below link:
http://www.clipsal.com/Trade/Products/ProductDetail?catno=156/2
User-added image
