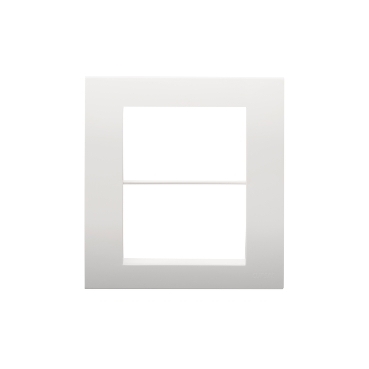

White Electric 1 PCE 0

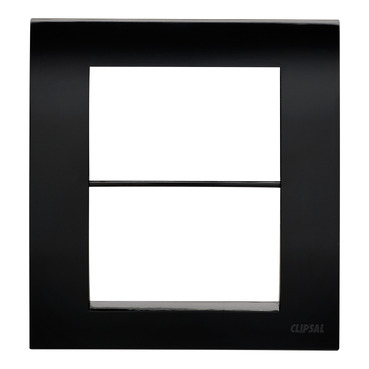

Black 1 PCE 0

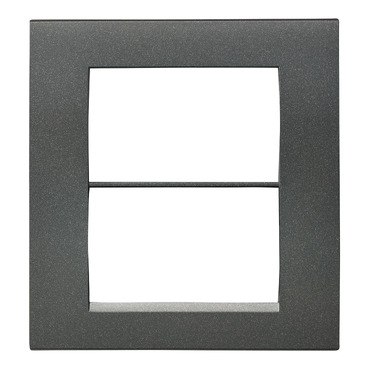

Charcoal 1 PCE 0

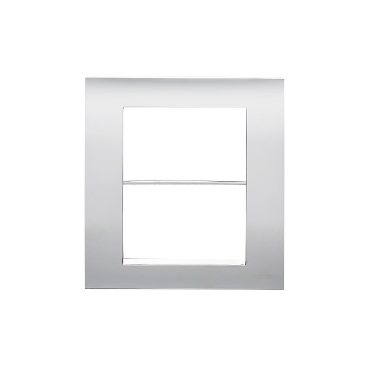

Chrome 1 PCE 0

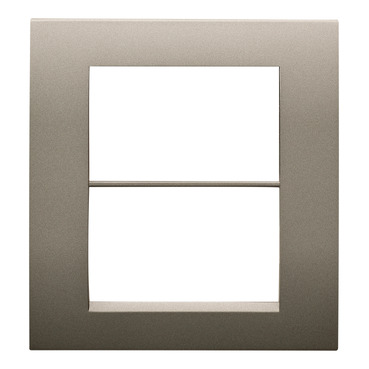

Champagne 1 PCE 0

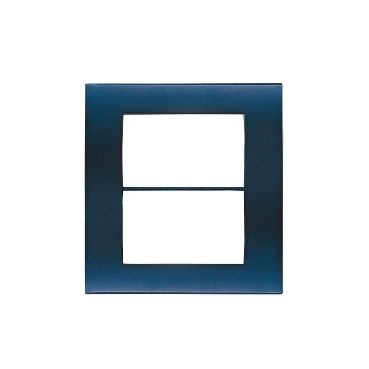

Dark Blue 1 PCE 0
Gun Metal 1 PCE 0
Platinum Aluminium 1 PCE 0

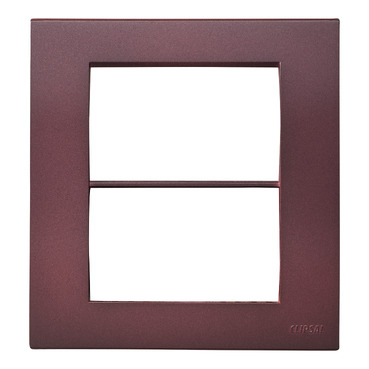

Red 1 PCE 0

Home ProductsPower Points and SwitchesModena and Strato 8000 SeriesCover Plate

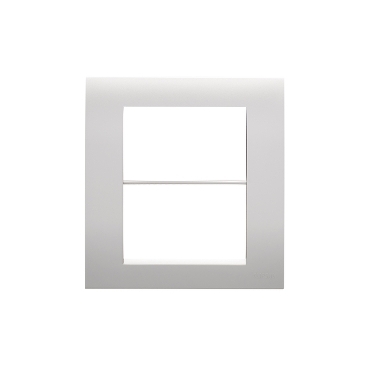

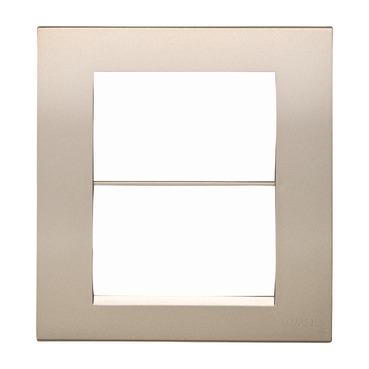

Modena/Strato Cover Plate Double Vertical | Platinum Aluminium

Item Number: M8000VC/2-PT

White Electric 1 PCE 0
Black 1 PCE 0
Charcoal 1 PCE 0
Chrome 1 PCE 0
Champagne 1 PCE 0
Dark Blue 1 PCE 0
Gun Metal 1 PCE 0
Platinum Aluminium 1 PCE 0
Red 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554738167	WE
5	CRT	9311554738174	WE
1	PCE	9311554738181	BK
5	CRT	9311554738198	BK
1	PCE	9311554738266	CC
5	CRT	9311554738273	CC
1	PCE	9311554738204	CH
5	CRT	9311554738211	CH
1	PCE	9311554738228	CP
5	CRT	9311554738235	CP
1	PCE	9311554738303	DB
5	CRT	9311554738310	DB
1	PCE	9311554738242	GM
5	CRT	9311554738259	GM
1	PCE	9311554738327	PT
5	CRT	9311554738334	PT
1	PCE	9311554738280	RD
5	CRT	9311554738297	RD

Specifications

Design

Range of product	PDL 800 Modena Series
Product brand	Clipsal

Physical

Marking	without marking
Mounting position	vertical
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1 cm
Package 1 width	17 cm
Package 1 length	16.5 cm
Package 1 weight	48 g
Sustainable packaging	No
China rohs label	5
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications
