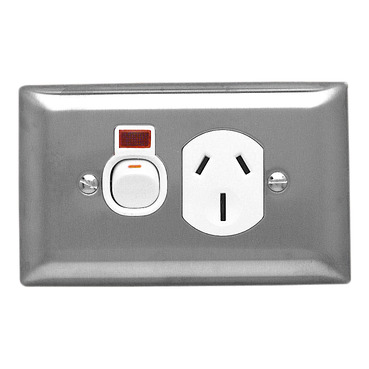

Metal Plate Series Socket Mechanism Single A Style Stainless Steel | White Electric
Item Number: A15/15NA-WE
Datasheet
Close
Specifications
Design
Range of product
Metal Plate
Product brand
Clipsal
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
- switch
- rocker
Fixing mode
by screws
Local signalling
indicator light
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
15 A
Depth
30 mm
Length
115 mm
Width
70 mm
Fixing center
84 mm
Standards
- AS/NZS 3100
- AS/NZS 3112
- AS/NZS 3133:approval number S/1
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
stainless steel
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.0 cm
Package 1 width
7.0 cm
Package 1 length
11.5 cm
Package 1 weight
0.168 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
