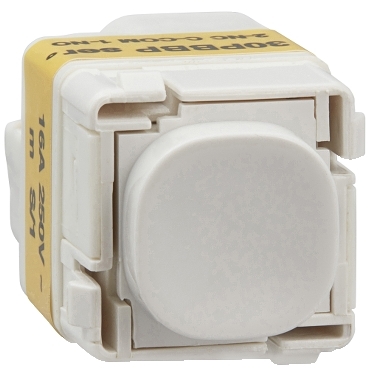

Impress Series, Push Button Switch, 16A Momentary Action, Bell Press Mechanism, 30 Series White Electric
Item Number: 30PBBP/GP-WE
Datasheet
Close
Specifications
Design
Range of product
Series 30|Impress
Product or component type
push-button
Product brand
Clipsal
Sustainable offer status
Green Premium product
Physical
Device presentation
basic element
Actuator
push-button
Local signalling
without light indicator
[ue] rated operational voltage
250 V AC
Inrush current
16 A
Depth
10 mm
Width
21 mm
Length
21 mm
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
plastic
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1 cm
Package 1 width
2.1 cm
Package 1 length
2.1 cm
Package 1 weight
0.04 kg
