Classic C2000 Series Switched Socket Outlet Classic, 250V, 10A, Skirt Mount

Classic C2000 Series Switched Socket Outlet Classic, 250V, 10A, Skirt Mount | WE

Item Number: C2016/2-WE

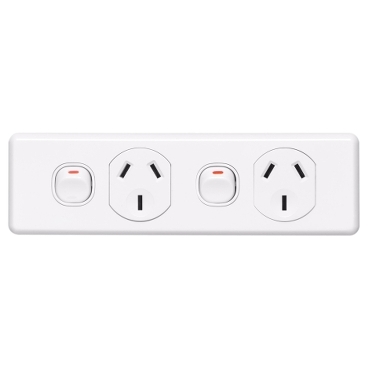

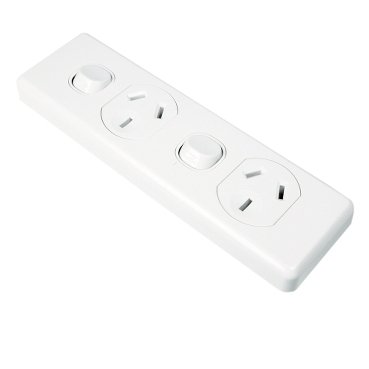

Socket outlet for horizontal installations. Twin switched socket designed to be skirting mounted. Clipsal C2000. Colour: White Electric Rated current: 10A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width76 mm

Height icon

Height47 mm

Depth icon

Depth28 mm

Barcode

Qty UoM EAN Colour
-
-
-
Sockets

C2000 Socket features

  • Green Premium Product
  • Available in single, double and quad models, in vertical or horizontal format
  • Low profile design clip-on cover
  • Four corner mounting points
  • Options such as extra switches, safety shutters and neons
  • Manufactured in accordance with AS/NZS3100, AS/NZS3112 and AS/NZS3133
  • Recommended for residential and commercial environments.

Specifications

Design

Range of product

Classic Series C2000

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

28 mm

Height

47 mm

Length

159 mm

Width

76 mm

Fixing center

135 mm

Standards

AS/NZS 3080-96

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Distance between centers

145 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.0 cm

Package 1 width

9.0 cm

Package 1 length

24.0 cm

Package 1 weight

117.0 g
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Other technical guide

  • Environmental Disclosure

  • Specification Guide

  • Certificates (MSDS)

Frequently Asked Questions

hide show

What is part number for mounting block to suit C2016/2?

Unfortunately, No mounting block available.
For more information see:https://www.clipsal.com/products/detail?CatNo=C2016/2&tab-document-1=0&itemno=C2016/2-WE
switched socket twin skirting 10a

What is the double gpo that can be fed separately?

The C2016/2 is independantly fed where for the outlets on the 16/2 are fed from the same supply. see attachments
Office

Classic C2000 range

The contemporary styling and flexibility of the C2000 range have made it Clipsal’s most popular range of switches and power points.

The C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters.

The extensive product range also includes light dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
