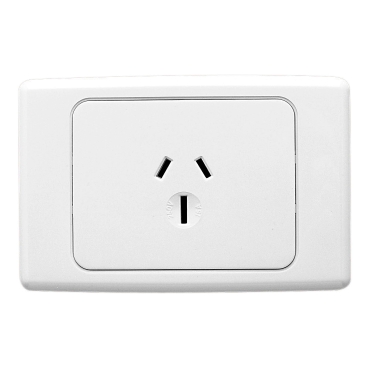

2000 Series Automatic Single Switch Socket Outlet 250VAC, 15A

Home ProductsPower Points and Switches2000 SeriesAutomatic Single Switch Socket Outlet

2000 Series Automatic Single Switch Socket Outlet 250VAC, 15A | WE

Item Number: 2010/15-WE

The Clipsal 2000 Series Single Switched Outlet with Removable Extra Switch gives you the option of activating lighting, exhaust fan, or another circuit, while also plugging in an appliance. Rated 10A, 250V, the outlet is designed to be installed vertically.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 2000

Product or component type

socket-outlet

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 1

Local signalling

without light indicator

[in] rated current

15 A

[ue] rated operational voltage

250 V AC

Depth

31 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Standards

AS/NZS 3112|AS 3100|AS 3109|AS/NZS 3122:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

7.5 cm

Package 1 length

11.5 cm

Package 1 weight

90 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

11.9 cm

Package 2 width

8.3 cm

Package 2 length

17.9 cm

Package 2 weight

5 kg

Unit type of package 3

CAR

Number of units in package 3

100

Package 3 height

30.5 cm

Package 3 width

29.6 cm

Package 3 length

43.6 cm

Package 3 weight

100 kg
Show all specifications
