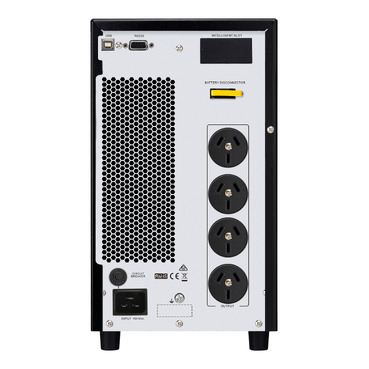

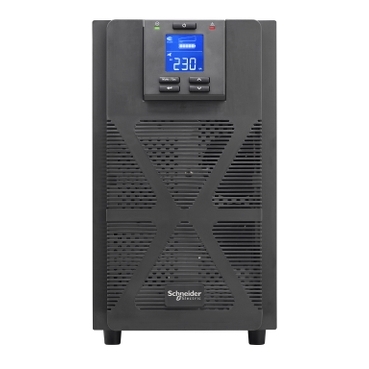

Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD

Home ProductsNetwork ConnectivityUPSTower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD

Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD

Item Number: SRVS3KI-AZ

Datasheet

Product Dimensions

Width icon

Width19 cm

Height icon

Height33.6 cm

Depth icon

Depth42.5 cm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Warranty

2 years repair or replace

Physical

Rated power in w

2400 W

Number of cables

1

Provided equipment

1 IEC 60320 C19 to Australian power cable|1 USB cable|1 RS-232 configuration cable| user manual

Height

33.6 cm

Width

19 cm

Depth

42.5 cm

Net weight

26.8 kg

Mounting mode

not rack-mountable

Mounting position

vertical

Product certifications

CE

Standards

EN/IEC 62040-1:2019/A11:2021|EN/IEC 62040-2:2006/AC:2006|EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 % non-condensing

Ambient air temperature for storage

-20...50 °C

Ip degree of protection

IP20

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Package 1 bare product quantity

1

Presentation

For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Lead time

Usually in Stock

Main input voltage

230 V

Input voltage

220 V|240 V

Output voltage

220 V|240 V

Rated power in va

3000 VA

Cable length

4.86 ft

Mounting location

front

Usb compatible

No

Input voltage limits

110...285 V half load|160...280 V full load

Network frequency

40...70 Hz auto sensing

Graph display

1

Efficiency

88 % (full load)

Bypass type

internal bypass (automatic and manual)

Crest factor

3 : 1

Operating altitude

0...3000 m

Storage relative humidity

0...95 % non-condensing

Storage altitude

0...15000 m

Acoustic level

50 dBA

Battery type

lead-acid battery

Battery voltage

72 V

Battery design life

2 year(s)

Ups design life

3 year(s)

Battery life

3...5 year(s)

Free slots

1

Control panel

multifunction LCD status and control console

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

46.5 cm

Package 1 width

32.5 cm

Package 1 length

56.5 cm

Package 1 weight

29 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
