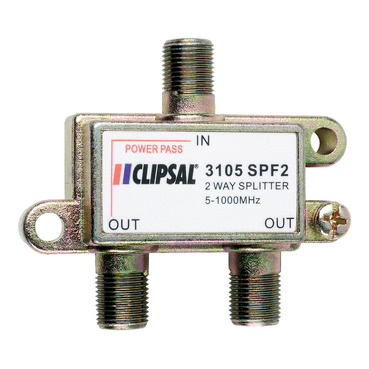

Clipsal Actassi, Terrestrial Splitter, 2 Way, F-Type, Terrestrial, 1 Leg Power Pass, 1GHz
Item Number: 3105SPF2
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Electricimagination
Product or component type
splitter block
Physical
Number of terminals
1 earth contact
Connections - terminals
F connection
Transmission frequency
5...1000 MHz
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs exemption information
Yes
Others
Commercial status history
SESA65410 | Tue Mar 19 22:08:00 EDT 2024 | From Import Local | From 18 to 19
Package 1 bare product quantity
1
Maximum splitter loss
4.4 dB
Number of outputs
2
Number of inputs
1
Number of mounting holes
2
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.0 cm
Package 1 width
11.0 cm
Package 1 length
13.0 cm
Package 1 weight
52.0 g
