Linergy One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units

Home ProductsIndustrialLinergyOne symmetric mounting rail

Linergy One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units

Item Number: NSYSDR200BD

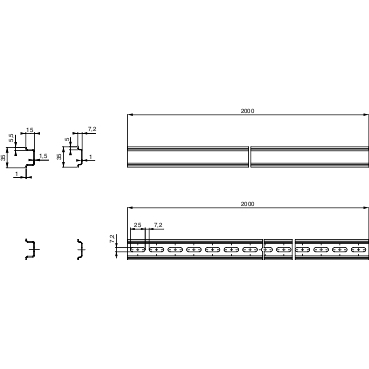

Set of 10 symmetrical DIN rails for equipment The rail is made from perforated 1mm galvanised steel The nominal width is 35mm The nominal height is 7,2mm The product length is 2000mm Fixed with a pitch of 25mm

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Device application

multi-purpose

Range

PanelSeT

Product or component type

rail

Surface finish

perforated

Warranty

18 months

Physical

Range compatibility

PanelSeT

Quantity per set

set of 10

Fixing mode

by fixing element - structure of enclosure location

Length

2000 mm

Height

nominal: 7.2 mm

Width

nominal: 35 mm

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1001004EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Device composition

1 rail

Material

galvanised steel

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

800

Average percentage of recycled plastic content

0 %

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

No

Device short name

TR

Accessory / separate part category

mounting accessory

Type of rail

symmetrical DIN

Enclosure nominal dimensions

-

Adjustment

  • pitch 25 mm
  • continuous adjustment

Thickness

1 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.450 cm

Package 1 width

4.500 cm

Package 1 length

200.000 cm

Package 1 weight

660.000 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

4.500 cm

Package 2 width

4.500 cm

Package 2 length

200.000 cm

Package 2 weight

6.600 kg

Unit type of package 3

P2M

Number of units in package 3

800

Package 3 height

45.000 cm

Package 3 width

200.000 cm

Package 3 length

120.000 cm

Package 3 weight

550.000 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

China rohs label

1

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
