Harmony XB5R Wireless push-button and configurable receiver with 10 colored caps metal, Ø22, 24...240V AC/DC

Home ProductsIndustrialHarmonyWireless push-button and configurable receiver with 10 colored caps

Harmony XB5R Wireless push-button and configurable receiver with 10 colored caps metal, Ø22, 24...240V AC/DC

Item Number: XB4RFA02

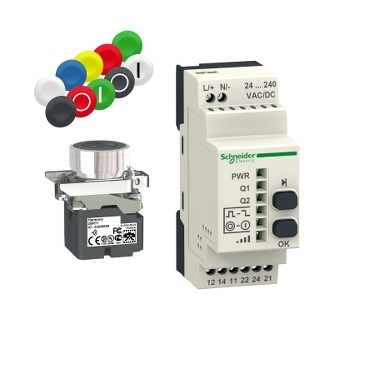

This Harmony XB4 flush wireless and batteryless push-button and receiver unit set is supplied with a set of 10 colored caps and uses a 24V to 240V AC input. It has a metal bezel. This wireless batteryless push-button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4R

Product or component type

wireless and batteryless package

Warranty

18 months

Physical

Transmission frequency

  • 2405 MHz for transmitter
  • 2405 MHz for receiver

Control type

wireless and batteryless push-button Ø 22 mm assembled on fixing collar

Communication port protocol

Zigbee conforming to IEEE 802.15.4

Number of channels

1

Product certifications

  • GOST
  • CCC
  • CSA
  • UL
  • C-Tick

Marking

CE

Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • UL 508

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2303007EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

16

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

XB4R

Head material

metal

Level or class

5M00G7W

Antenna type

omnidirectional

Type of receiver

programmable receiver (2 relays)

[us] rated supply voltage

24...240 V AC/DC 50/60 Hz

Kit composition

  • 1 diameter: 22 mm
  • 1 push-button head diameter: 22 mm
  • 1 receiver
  • 1 set of caps
  • 1 fixing collars
  • 1 transmitter

Status led

  • 1 LED green for power ON
  • 2 LEDs green for relay ON
  • 2 LEDs green for function mode
  • 1 LED green and yellow for reception signal

Max power consumption in w

1 mW

Modulation technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Customizable

no

Customizable

0

Compatibility code

XB4R

[us] rated supply voltage

24...240 V

Radio agreement

  • ANATEL
  • FCC
  • RSS
  • ARIB T66
  • ICASA
  • SRRC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.200 cm

Package 1 width

10.500 cm

Package 1 length

10.800 cm

Package 1 weight

250.000 g

Unit type of package 2

S03

Number of units in package 2

16

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.459 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

7 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

6.7833855377

Carbon footprint of the manufacturing phase [a1 to a3]

7 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0921883252

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0783819858

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.0599641432

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.3936161858

Carbon footprint of the end-of-life phase [c1 to c4]

0.4 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

7.4075361776

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

25b7f895-3732-43c8-9910-ef6005058640

End of life manual availability

ENVEOLI2303007EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
