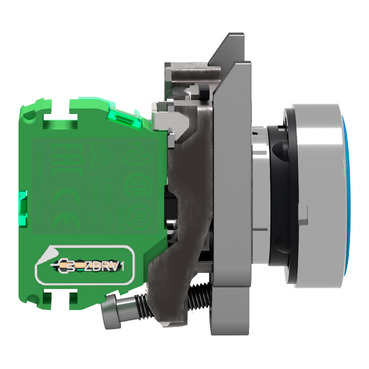

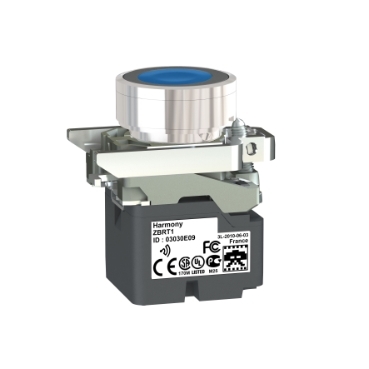

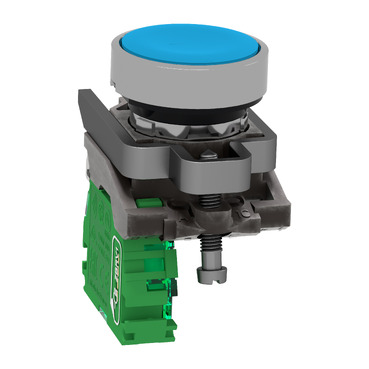

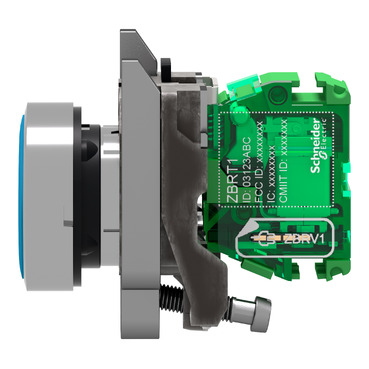

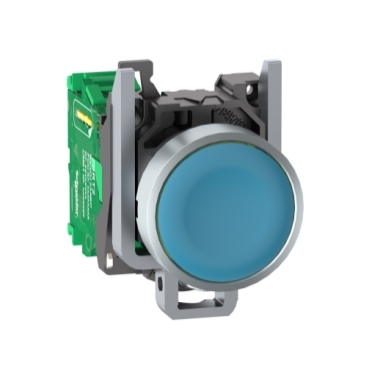

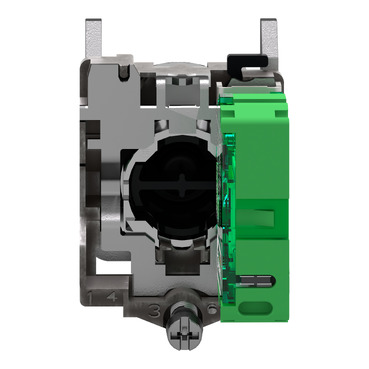

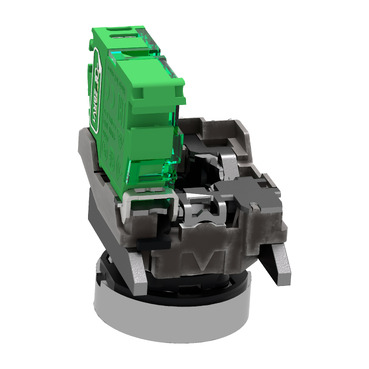

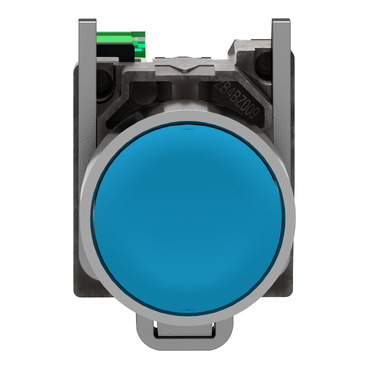

Harmony XB5R Wireless and batteryless transmitter push-button, metal, blue, 22mm, spring return

Item Number: ZB4RTA6

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480334559	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	wireless and batteryless transmitter
Warranty	18 months

Physical

Transmission frequency	2405 MHz
Number of channels	16
Embedding depth	42 mm
Net weight	0.045 kg
Standards	CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 UL 508
Communication port protocol	Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Fixing mode	fixing screw beneath head: 0.8-1.2 N.m
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Relative humidity	95 % at -40...70 °C without condensation
Ip degree of protection	IP66 (front face) conforming to IEC 60529 IP67 (front face) conforming to IEC 60529 IP69 (front face) conforming to IEC 60529 IP69K (front face) conforming to IEC 60529
Ik degree of protection	IK03 conforming to IEC 50102
Mechanical durability	1000000 cycles
Product certifications	C-Tick UL BT 2006/95/EC CSA GOST
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP101106EN
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	XB5R
Bezel material	chromium plated metal
Fixing collar material	zamak
Mounting diameter	22 mm
Level or class	5M00G7W
Antenna type	omnidirectional
Shape of signaling unit head	round
Type of operator	spring return push-button with transmitter
Operator profile	blue flush
Max power consumption in w	1 mW
Modulation technique	O-QPSK
Bandwidth	5 MHz
Antenna gain	0 dBi
Cad overall height	41.5 mm
Cad overall width	30 mm
Cad overall depth	43 mm
Operating travel	4.3 mm (total travel)
Operating force	10 N C/O changing electrical state
Mechanical robustness	free fall resistance 1000 mm conforming to IEC 60068-2-32
Radio agreement	ANATEL ARIB T66 FCC ICASA RSS
Maximum sensing distance	100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Acquisition time	2 ms
Response time	< 2 ms
Emission power	3 mW
Electrical composition code	PW1
Customizable	no
Customizable	0
Protective treatment	TH
Shock resistance	25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance	5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6 +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Directives	1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.4 cm
Package 1 width	5.3 cm
Package 1 length	8.2 cm
Package 1 weight	82.0 g
Unit type of package 2	S01
Number of units in package 2	25
Package 2 height	15.0 cm
Package 2 width	15.0 cm
Package 2 length	40.0 cm
Package 2 weight	2.225 kg
Product repair index - dam document id	XB4BS8442-ENVREPAIR-A-EN
Sustainable packaging	Yes
Product repair index	A
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	e1d47e89-a4e1-4f33-a0c0-2fe5c9179aa4
China rohs label	6
Product repair index	A
End of life manual availability	ENVEOLI1103010EN
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
