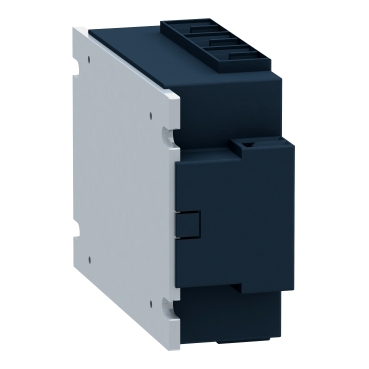

Harmony Solid State Relays Solid state relay 25A, panel mount, zero voltage switching, thermal pad, input 90…140V AC, output 48…530V AC

Item Number: SSP3A225F7T

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101.3 mm

Height79.7 mm

Depth35.4 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480579974	-

Specifications

Design

Range of product	Harmony Solid State Relays
Product or component type	solid state relay up to 30 A

Physical

Provided equipment	thermal interface
Mounting support	panel
[in] rated current	25 A
Connections - terminals	screw connectors
Control type	without test button
Insulation resistance	>= 1000 MOhm at 500 V DC
Connections - terminals	screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output
Local signalling	LED, green for input
Ip degree of protection	IP20
Net weight	0.24 kg
Width	101.3 mm
Height	79.7 mm
Depth	35.4 mm
Device presentation	complete product
Ambient air temperature for operation	-40...80 °C
Ambient air temperature for storage	-40...125 °C
Product certifications	UL CSA
Marking	CE
Standards	IEC 62314 IEC 60950-1 IEC 61000
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1505006EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
	At least in Europe
Device short name	SSP
Network number of phases	3 phases
Solid state output type	zero voltage switching
[uc] control circuit voltage	90...140 V
Output switching mode	zero voltage switching
[uc] control circuit voltage	90...140 V AC
Minimum switching voltage	90 V AC turn-on
Maximum switching voltage	10 V AC turn-off
Response time	20 ms (turn-on) 30 ms (turn-off)
Input current limits	7...16 mA
Output voltage	48...530 V AC
Load current	0.1...25 A
Absolute maximum voltage	1200 V
Surge current	275 A for 20 ms 300 A for 16.6 ms 85 A for 1 s
Maximum i²t for fusing	380 A².s for 10 ms at 50 Hz 370 A².s for 8.3 ms at 60 Hz
Maximum leakage current	3 mA off-state
Maximum voltage drop	<1.35 V on-state
Dv/dt	500 V/µs off-state at maximum voltage
Cos phi	0.5...0.5 (with maximum load)
Motor power hp	0.75 hp 40 °C 120 V AC 1 hp 40 °C 240 V AC 3 hp 40 °C 480 V AC 4.4 hp 40 °C 530 V AC
Motor power kw	0.56 kW at 40-40 °C 120 V AC 0.74 kW at 40-40 °C 240 V AC 2.22 kW at 40-40 °C 480 V AC 3.24 kW at 40-40 °C 530 V AC
Capacitance unbalance	8 pF for input/output
Dielectric strength	4 kV AC for input/output 4 kV AC for input or output to case
Tightening torque	0.9...1.1 N.m for input 1.7...2.2 N.m for output
Thermal resistance	0.24 °C/W
Flame retardance	V0 conforming to UL 94
Pollution degree	2
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.000 cm
Package 1 width	8.500 cm
Package 1 length	12.000 cm
Package 1 weight	279.000 g
Unit type of package 2	S02
Number of units in package 2	27
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	11.533 kg
Sustainable packaging	Yes
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	134201bc-d293-4667-9cca-10a7f11729e0
End of life manual availability	ENVEOLI1505006EN
Warranty (in months)	18
