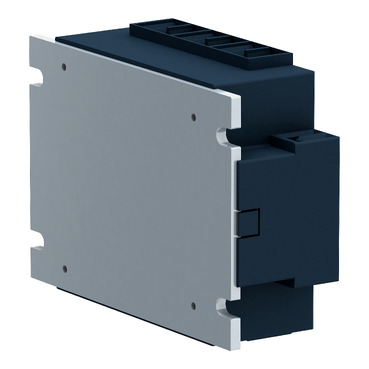

Harmony Solid State Relays Solid state relay 25A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC

Item Number: SSP3A225BDT

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width104 mm

Height74.6 mm

Depth41 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480579981	-

Specifications

Design

Range of product	Harmony Solid State Relays
Product or component type	panel mount relay

Physical

Provided equipment	thermal pad
Mounting support	panel
[in] rated current	25 A
Connections - terminals	screw connectors
Control type	without test button
Insulation resistance	>= 1000 MOhm at 500 V DC
Connections - terminals	screw terminals: 1 x 0.2...1 x 2.5 mm², (24 AWG...14 AWG) for input screw terminals: 1 x 1.5...1 x 10 mm², (16 AWG...8 AWG) for output
Local signalling	LED, green for input
Ip degree of protection	IP20
Net weight	0.37 kg
Width	104 mm
Height	74.6 mm
Depth	41 mm
Device presentation	complete product
Ambient air temperature for operation	-40...80 °C
Ambient air temperature for storage	-40...125 °C
Product certifications	CE CSA EAC UL UKCA
Marking	CE
Standards	IEC/EN 62314 IEC/EN 60947-4-2 IEC/EN 60947-4-3 UL 60947-4-2 C22.2 No. 14
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2504009EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
	At least in Europe
Package 1 bare product quantity	1
Package 2 bare product quantity	24
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	SSP
Network number of phases	3 phases
Solid state output type	zero voltage switching
[uc] control circuit voltage	4...32 V
Output switching mode	zero voltage switching
[uc] control circuit voltage	4...32 V DC
Minimum switching voltage	4 V DC turn-on
Maximum switching voltage	1 V DC turn-off
Response time	8.33 ms (turn-on) 8.33 ms (turn-off)
Input current limits	15...35 mA
Output voltage	42...660 V AC
Load current	0.15...25 A
Absolute maximum voltage	1200 V
Surge current	275 A for 20 ms 300 A for 16.6 ms
Maximum i²t for fusing	380 A².s for 10 ms at 50 Hz 370 A².s for 8.3 ms at 60 Hz
Protection device type	TVS
Maximum leakage current	3 mA off-state
Maximum voltage drop	<1.4 V on-state
Dv/dt	500 V/µs off-state at maximum voltage
Cos phi	0.5...0.5 (with maximum load)
Motor power hp	0.75 hp 40 °C 120 V AC 1 hp 40 °C 240 V AC 3 hp 40 °C 480 V AC 5 hp 40 °C 600 V AC
Motor power kw	0.55 kW at 40-40 °C 120 V AC 0.75 kW at 40-40 °C 240 V AC 2.2 kW at 40-40 °C 480 V AC 3.7 kW at 40-40 °C 600 V AC
Capacitance unbalance	8 pF for input/output
Dielectric strength	4 kV AC for input/output 4 kV AC for input or output to case
[uimp] rated impulse withstand voltage	0.8 kV for input to case 6 kV for input/output circuit 6 kV for input/output to case
Tightening torque	1.2 N.m for input 2.5 N.m for output
Thermal resistance	0.24 °C/W
Electromagnetic compatibility	electrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2 electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2 conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6 radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3 surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5 surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5 surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5 electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4 immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11 immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11 immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11 immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11 electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4 radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3 radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1 conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1
Flame retardance	V0 conforming to UL 94
Pollution degree	2
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.700 cm
Package 1 width	8.000 cm
Package 1 length	11.600 cm
Package 1 weight	377.000 g
Unit type of package 2	S02
Number of units in package 2	24
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	9.500 kg
Total lifecycle carbon footprint	2 602 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.4182971838
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0347068478
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0022130699
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	2600.9342430238
Carbon footprint of the use phase [b2, b3, b4, b6]	2 601 kg CO2 eq.
Lead free	Yes
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0579147431
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2602.4473748685
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI2504009EN
Take-back	No
Warranty (in months)	18
