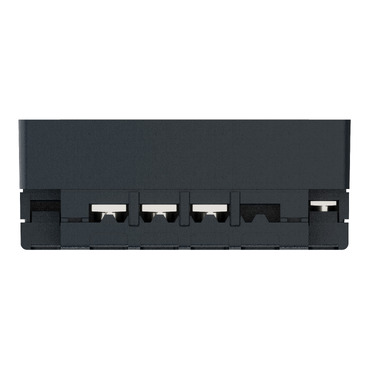

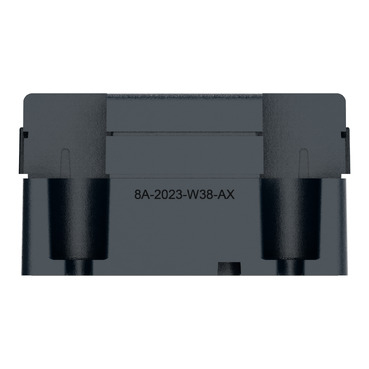

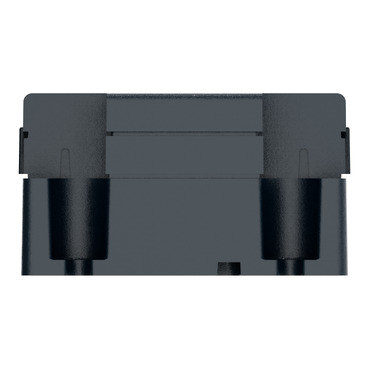

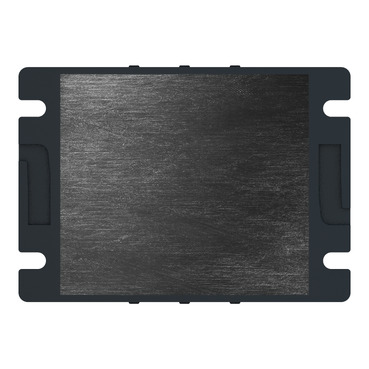

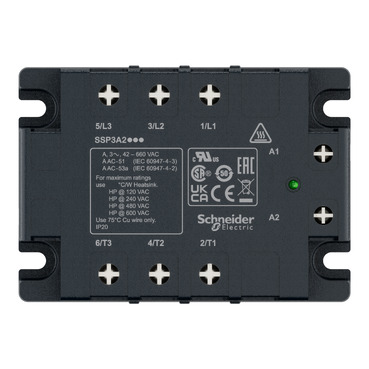

Harmony Solid State Relays Solid state relay 25A, panel mount, zero voltage switching, thermal pad, input 180…280V AC, output 48…530V AC

Item Number: SSP3A225P7T

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width104 mm

Height74.6 mm

Depth41 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480579967	-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

panel mount relay

Physical

Provided equipment

thermal pad

Mounting support

panel

[in] rated current

25 A

Connections - terminals

screw connectors

Control type

without test button

Insulation resistance

>= 1000 MOhm at 500 V DC

Connections - terminals

screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input
screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output

Local signalling

LED, green for input

Ip degree of protection

IP20

Net weight

.37 kg

Width

104 mm

Height

74.6 mm

Depth

41 mm

Device presentation

complete product

Ambient air temperature for operation

-40...80 °C

Ambient air temperature for storage

-40...125 °C

Product certifications

CE
CSA
EAC
UL
UKCA

Marking

Standards

IEC/EN 62314
IEC/EN 60947-4-2
IEC/EN 60947-4-3
UL 60947-4-2
C22.2 No. 14

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

At least in Europe

Package 1 bare product quantity

Package 2 bare product quantity

Weee label

Device short name

SSP

Network number of phases

3 phases

Solid state output type

zero voltage switching

[uc] control circuit voltage

180...280 V

Output switching mode

zero voltage switching

[uc] control circuit voltage

90...280 V AC 50/60 Hz

Minimum switching voltage

90 V AC turn-on

Maximum switching voltage

9 V AC turn-off

Response time

20 ms (turn-on)
30 ms (turn-off)

Input current limits

7...20 mA

Output voltage

42...660 V AC

Load current

0.15...25 A

Absolute maximum voltage

1200 V

Surge current

275 A for 20 ms
300 A for 16.6 ms

Maximum i²t for fusing

380 A².s for 10 ms at 50 Hz
370 A².s for 8.3 ms at 60 Hz

Protection device type

TVS

Maximum leakage current

3 mA off-state

Maximum voltage drop

<1.4 V on-state

Dv/dt

500 V/µs off-state at maximum voltage

Cos phi

0.5...0.5 (with maximum load)

Motor power hp

0.75 hp 40 °C 120 V AC
1 hp 40 °C 240 V AC
3 hp 40 °C 480 V AC
5 hp 40 °C 600 V AC

Motor power kw

0.55 kW at 40-40 °C 120 V AC
0.75 kW at 40-40 °C 240 V AC
2.2 kW at 40-40 °C 480 V AC
3.7 kW at 40-40 °C 600 V AC

Capacitance unbalance

8 pF for input/output

Dielectric strength

4 kV AC for input/output
4 kV AC for input or output to case

[uimp] rated impulse withstand voltage

4 kV for input to case
6 kV for input/output circuit
6 kV for input/output to case

Tightening torque

1.2 N.m for input
2.5 N.m for output

Thermal resistance

0.24 °C/W

Electromagnetic compatibility

electrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2
electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2
conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6
radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3
surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5
surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5
surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5
electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4
immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11
immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11
immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11
immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11
electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4
radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3
radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1
conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1

Flame retardance

V0 conforming to UL 94

Pollution degree

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.700 cm

Package 1 width

8.000 cm

Package 1 length

11.600 cm

Package 1 weight

375.000 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

9.475 kg

Total lifecycle carbon footprint

2 900 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.4393871047

Carbon footprint of the manufacturing phase [a1 to a3]

1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0352229348

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.002245978

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

2898.6994949433

Carbon footprint of the use phase [b2, b3, b4, b6]

2 899 kg CO2 eq.

Lead free

Yes

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0587759289

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

2900.2351268897

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Take-back

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
End of Life Manual

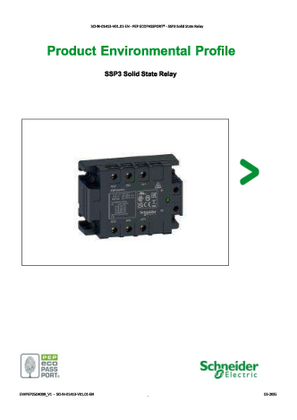

Environmental Disclosure
Installation Instruction
Technical illustration
Certificates (MSDS)
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Colour ()

Harmony Solid State Relays Solid state relay 25A, panel mount, zero voltage switching, thermal pad, input 180…280V AC, output 48…530V AC

Item Number: SSP3A225P7T

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical illustration

Certificates (MSDS)

eTechPub

Declaration of Conformity

Declaration of Conformity (Sustainability)

SSP3A2_60278_3D-simpl

Solid state relay-panel-input 180-280VAC, output 48-530VAC,25A-Thermal Interface - 3D CAD

Catalog Harmony Solid State Relays - English

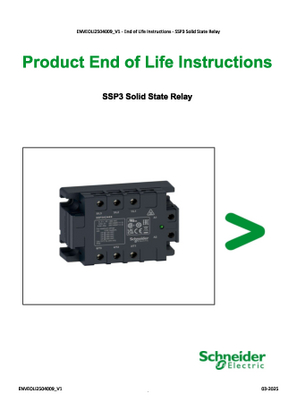

SSP3A2... ZELIO Solid State Relay - Panel mount - 3 Phase, Product End-of-Life Instructions

SSP3 Solid State Relay

SSP3 Solid State Relay

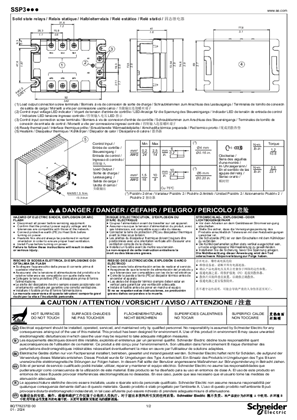

Solid state relays, Instruction Sheet
