Harmony Solid State Relays Socket 6A, relay type SSL, screw connector, 230 V AC/DC
Item Number: SSLZVA4
"This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 230V AC/DC." "It also offers clear circuit labelling on the sides to facilitate installation and maintenance." "It features a visual indicator LED for a simpler troubleshooting and commissioning." "Its clear schematic on the side of the socket enables easier wiring and maintenance."
Specifications
Design
| Range of product | Harmony Relay |
|---|---|
| Product or component type | socket |
| Product compatibility |
|
Physical
| [ue] rated operational voltage | < 250 V AC/DC |
|---|---|
| Connections - terminals |
|
| Fixing mode | clip-on (35 mm DIN rail) |
| Sale per indivisible quantity | 10 |
| Local signalling | LED (green) for input status |
| Width | 6.2 mm |
| Height | 101 mm |
| Depth | 78.6 mm |
| Net weight | 0.0285 kg |
| Standards | IEC 61984 |
| Product certifications |
|
| Marking | CE |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -40...70 °C |
| Ip degree of protection | IP20 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1405004EN |
| Eu rohs directive | Compliant |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
-
All
-
CAD Files and Packs
-
End of Life Manual
-
Environmental Disclosure
-
Technical illustration
-

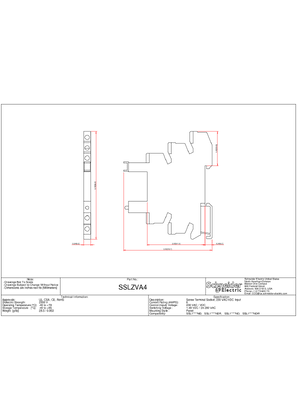

Technical Drawing
-
