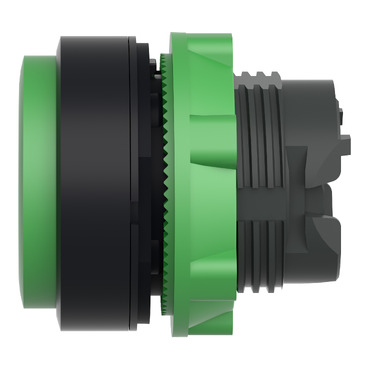

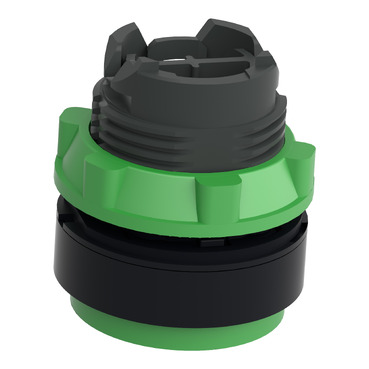

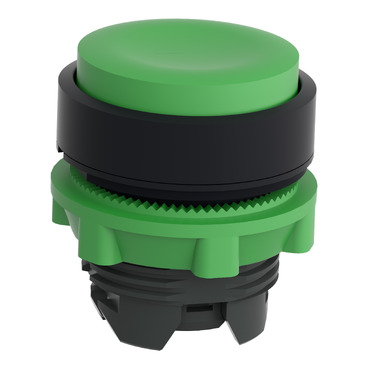

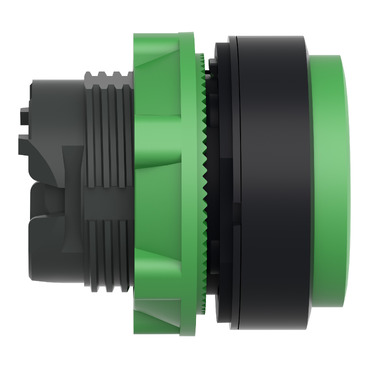

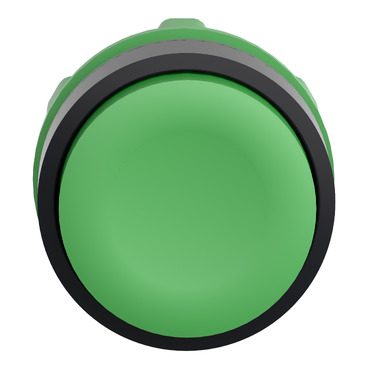

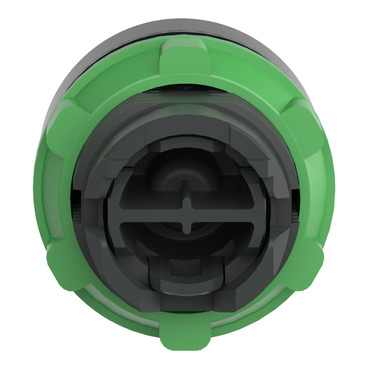

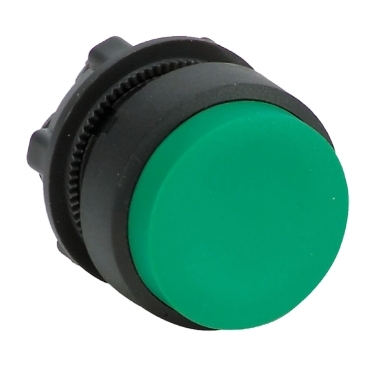

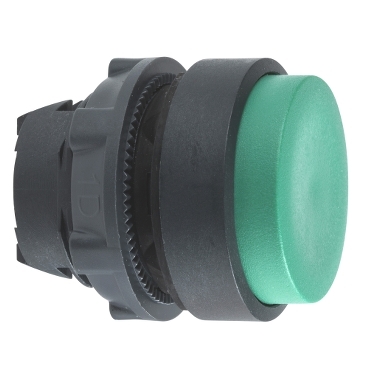

Harmony XB5, push-button head, plastic, projecting, green, 22mm, spring return, unmarked

Harmony XB5, push-button head, plastic, projecting, green, 22mm, spring return, unmarked

Item Number: ZB5AL3

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

1

Net weight

0.019 kg

Mechanical durability

10000000 cycles

Marking

unmarked

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

<ul><li>IP66 conforming to IEC 60529</li><li>IP67</li><li>IP69</li><li>IP69K</li></ul>

Ik degree of protection

IK03 conforming to IEC 50102

Standards

<ul><li>JIS C8201-5-1</li><li>IEC 60947-1</li><li>IEC 60947-5-4</li><li>IEC 60947-5-1</li><li>CSA C22.2 No 14</li><li>UL 508</li><li>JIS C8201-1</li></ul>

Product certifications

<ul><li>CSA</li><li>DNV</li><li>BV</li><li>LROS (Lloyds register of shipping)</li><li>UL listed</li></ul>

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2303008EN

Circularity profile

ENVEOLI2303008EN

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Device short name

ZB5

Bezel material

dark grey plastic

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

green projecting, unmarked

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

33 mm

Main group

push-button

Group of product

projecting push non illum

Station name

<ul><li>XALD 1...5 cut-outs</li><li>XALK 2...5 cut-outs</li></ul>

Cap/operator or lens colour

green

Electrical composition code

<ul><li>C1 for <9 contacts using single blocks in front mounting</li><li>C2 for <9 contacts using single and double blocks in front mounting</li><li>C11 for <3 contacts using single blocks in front mounting</li><li>C15 for <1 contacts using single blocks in front mounting</li><li>SF1 for <3 contacts using single blocks in front mounting</li><li>SR1 for <3 contacts using single blocks in rear mounting</li></ul>

Customizable

no

Customizable

1

Gcr bridge

ZB5ALCUST01

Compatibility code

ZB5

Protective treatment

TH

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

<ul><li>NEMA 13</li><li>NEMA 4X</li></ul>

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Shock resistance

<ul><li>30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27</li><li>50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27</li></ul>

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.4 cm

Package 1 width

4.5 cm

Package 1 length

5.4 cm

Package 1 weight

18 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

3.4 cm

Package 2 width

4.5 cm

Package 2 length

26.5 cm

Package 2 weight

90 g

Unit type of package 3

S03

Number of units in package 3

150

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

3.145 kg

Packaging without single use plastic

Yes

Packaging made with recycled cardboard

Yes

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.165000688
