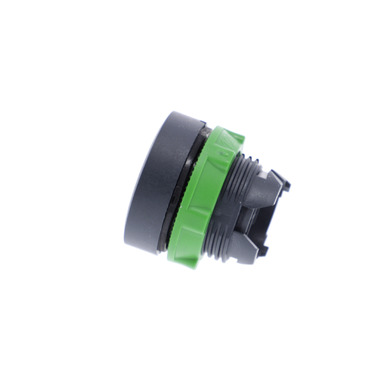

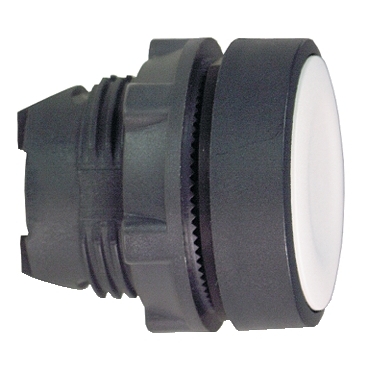

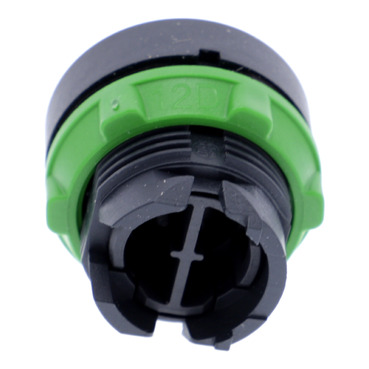

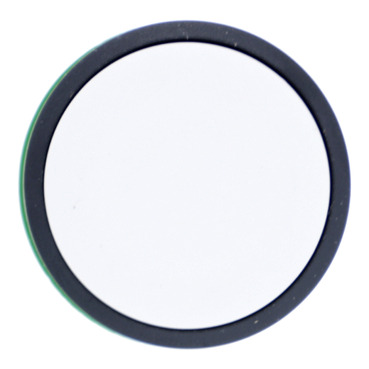

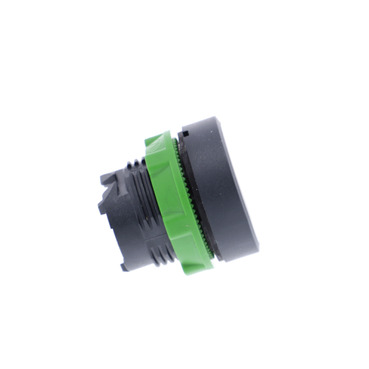

Harmony XB5 push-button head plastic, flush, white, 22mm, spring return, unmarked

Item Number: ZB5AA1

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110904369	-
5	PAC	53389110904364	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	head for non-illuminated push-button
Warranty	18 months

Physical

Sale per indivisible quantity	1
Net weight	0.018 kg
Mechanical durability	10000000 cycles
Marking	unmarked
Device presentation	basic element
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
Ik degree of protection	IK03 conforming to IEC 50102
Standards	UL 508 JIS C8201-5-1 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1
Product certifications	DNV CSA BV LROS (Lloyds register of shipping) UL listed
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2303008EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	5
Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Package 3 bare product quantity	300
Package 4 bare product quantity	2400
Average percentage of recycled plastic content	6 %
Weee label	No
Weee applicability	Component
Device short name	ZB5
Bezel material	dark grey plastic
Mounting diameter	22.5 mm
Head type	standard
Shape of signaling unit head	round
Type of operator	spring return
Operator profile	white flush, unmarked

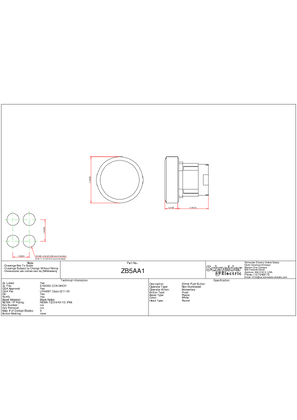

Cad overall width	29 mm
Cad overall height	29 mm
Cad overall depth	28 mm
Main group	push-button
Group of product	flush push non illuminated
Station name	XALD 1...5 cut-outs XALK 2...5 cut-outs
Cap/operator or lens colour	white
Electrical composition code	C1 for <9 contacts using single blocks in front mounting C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting
Customizable	no
Customizable	1
Gcr bridge	ZB5AACUST01
Compatibility code	ZB5
Protective treatment	TH
Overvoltage category	class II conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Nema degree of protection	UL type 4X/13
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.500 cm
Package 1 width	3.400 cm
Package 1 length	5.400 cm
Package 1 weight	17.000 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	4.500 cm
Package 2 width	3.400 cm
Package 2 length	26.500 cm
Package 2 weight	86.000 g
Unit type of package 3	S03
Number of units in package 3	300
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	5.617 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.13487309761150257
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0063542220714788555
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0047978866516138205
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.03289195102300111
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.17891715735759633
Average percentage of recycled plastic content	6 %
Average percentage of recycled metal content	29 %
Average percentage of recycled metal content	29 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI2303008EN
Take-back	No
Warranty (in months)	18
